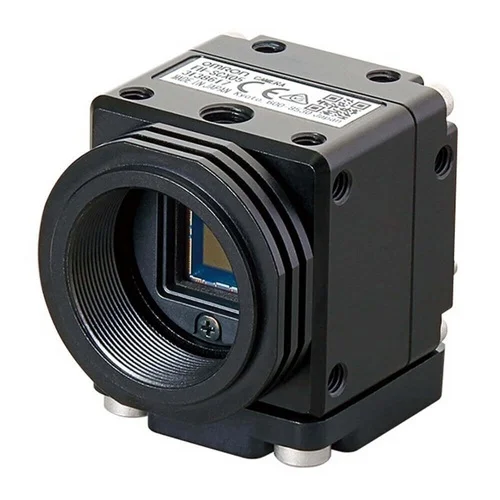

Omron FH-SCX05 5.0 MP High-Speed Industrial Color Vision Camera

Technical Overview

The Omron FH-SCX05 is a high-speed, digital industrial color vision camera belonging to the FH Series. It is engineered with a 5.0 Megapixel (2448x2048) 2/3-inch CMOS image sensor featuring a global shutter to capture fast-moving objects without distortion. Operating at a high frame rate of 97.2 fps, it seamlessly integrates with Omron FH series vision controllers to deliver robust AI-based automated visual inspection. The device offers an IP10 rating, an operating ambient temperature range of 0 to 40 °C, and a standard C-mount for extensive lens compatibility.

Key Features

5.0 Megapixel (2448 x 2048 pixels) resolution for precision imaging.
2/3-inch CMOS color image sensor.
Global shutter technology to eliminate motion blur on fast-moving targets.
High-speed image acquisition with a refresh rate of up to 97.2 frames per second.
C-mount lens compatibility for flexible optical configurations.
Compact industrial design with dimensions of 40mm x 42mm x 35mm.
Integrates seamlessly with AI-based Omron FH Vision controllers.

Technical Specification Matrix

Parameter	Value
Number of Pixels	5.0 MP
Image Resolution	2448 x 2048 pixels
Frame Rate	97.2 fps
Scan Type	Area Scan
Shutter Type	Global Shutter
Image Sensor Format	2/3-inch
Image Sensor Type	CMOS
Camera Type	Color
Lens Mount	C-mount
Pixel Size	3.45 µm
Dimensions (W x H x L)	40 mm x 42 mm x 35 mm
Operating Ambient Temperature	0 to 40 °C
Degree of Protection (IP)	IP10

Industrial Applications

1. High-Speed Beverage Bottling Label Inspection

In high-throughput bottling plants, checking label alignment, print quality, and barcode readability is critical. The 97.2 fps frame rate and global shutter of the FH-SCX05 allow for distortion-free, crisp image capture of fast-moving bottles on continuous conveyors.

Problem Solved

Eliminates motion blur on high-speed lines, preventing false-rejects caused by unreadable barcodes or skewed label artifacts.

97.2 fpsGlobal Shutter5.0 MegapixelHigh-Speed Inspection

2. Electronic PCB Component Color Verification

Surface-mount technology (SMT) inspection stations require precise color imaging to ensure correct polarity marks, component presence, and solder joint quality. The 5.0 MP color CMOS sensor captures fine details down to the 3.45 µm pixel size.

Problem Solved

Distinguishes subtle color differences in wire insulation or capacitor markings that monochrome systems miss, significantly reducing assembly defects.

Color CMOS3.45 µm Pixel SizeArea ScanAutomated Visual Inspection

3. Precision Machined Parts Dimensional Measurement

Manufactured automotive components require exact dimensional tolerance checks. The C-mount flexibility allows the use of specialized telecentric lenses, while the high 2448x2048 pixel resolution enables high-accuracy non-contact measurements.

Problem Solved

Replaces slow manual caliper checks with automated sub-millimeter visual measurement, removing human error and maintaining production velocity.

2448x2048 ResolutionC-mountDimensional MeasurementVision Controller
