USD 145.16
Omron 24V safety relay. Features 5 safety outputs (NO) and 1 auxiliary output (NC). Compact 45mm DIN-rail mount for monitoring E-stops and safety light curtains in industrial safeguarding systems.

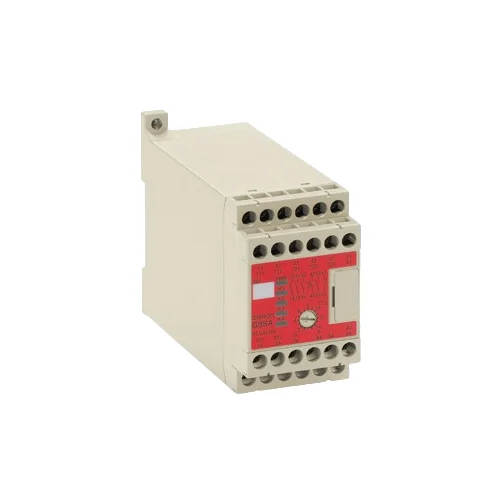

The Omron G9SA-501 AC/DC24 is a highly reliable, compact safety relay unit designed for rigorous industrial machine safeguarding applications. Enclosed in a 45mm wide DIN-rail mountable housing, it offers versatile 1 or 2 channel inputs capable of monitoring emergency stop buttons, safety interlock switches, and safety light curtains. Delivering high-performance redundancy, it features five instantaneous safety outputs (5PST-NO) and one auxiliary output (SPST-NC) for feedback. Built to comply with stringent EN ISO 13849-1 PL e and Category 4 standards, this relay ensures fail-safe operations across automation, robotics, and manufacturing environments.
| Parameter | Value |
|---|---|
| Operating Voltage | 24 VAC/VDC (85% to 110% of rated voltage) |
| Power Consumption | 5.7 VA max (AC) / 1.7 W max (DC) |
| Safety Outputs | 5PST-NO |
| Auxiliary Output | SPST-NC |
| Rated Output Current | 5 A max |
| Input Current | 40 mA max (60 mA max rating on some inputs) |
| Response Time | 10 ms max |
| Operate Time | 30 ms max |
| Safety Category | EN ISO 13849-1 PL e / Category 4 |
| Ambient Operating Temperature | -25°C to +55°C |
| Mounting Type | DIN Rail / Surface Mount |
| Width | 45 mm |
Utilized to monitor dual-channel emergency stop pushbuttons on high-risk CNC machining centers or hydraulic presses.
Provides fail-safe redundancy that ensures a machine will halt immediately even if a single contact in the switch welds or fails, fulfilling strict Category 4 safety requirements.
Acts as the electromechanical relay interface between a solid-state safety light curtain and the main power contactors of an automated packaging line.
Safely converts the lower-power PNP outputs of a light curtain into a robust 5-amp, multi-pole electromechanical disconnect, safely dropping power to hazard zones with a response time under 30 ms.
Wired to redundant mechanical safety interlock switches on the access doors of a high-speed robotic welding cell.
Isolates robotic arm power the instant an operator opens the access gate. The SPST-NC auxiliary contact is routed directly into the main PLC to continuously verify relay health and gate status.
