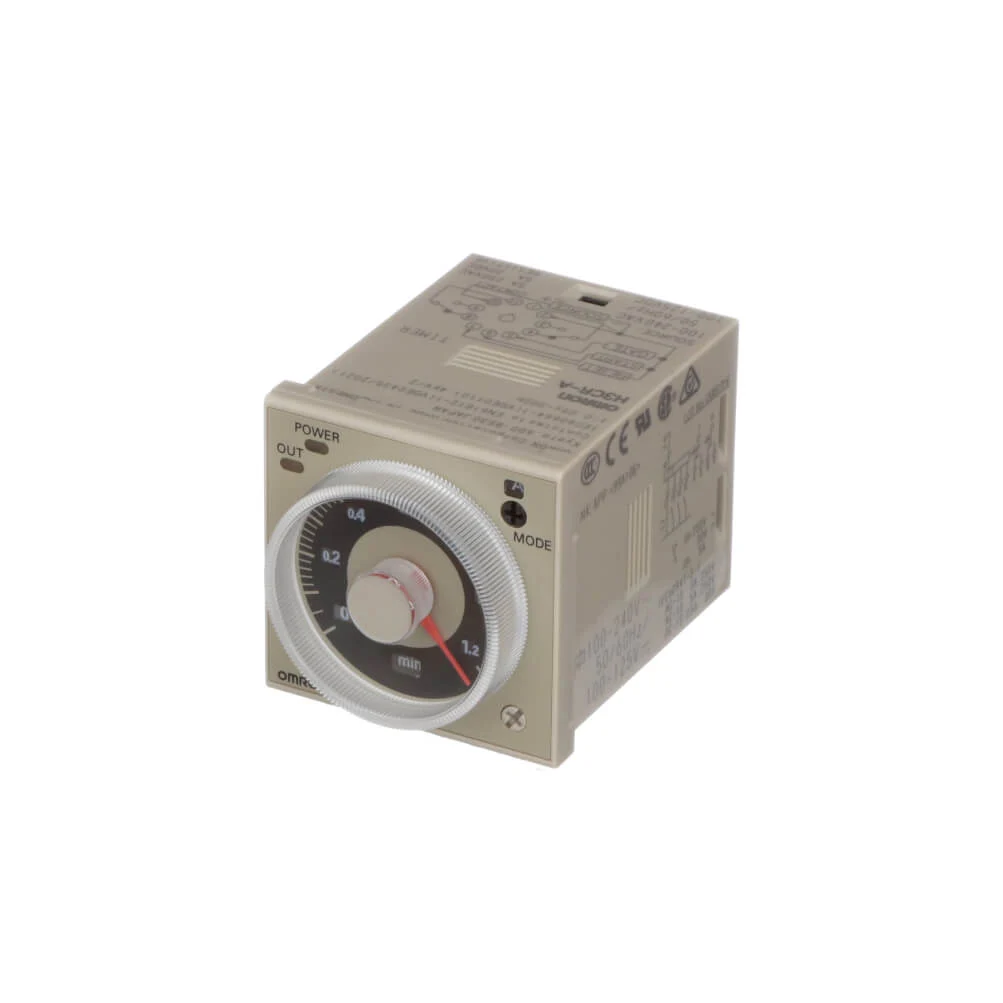

Omron H3CR-AP Analog Multi-Function Timer

Technical Overview

11-pin solid-state timer relay featuring 8 multi-modes, 18 time ranges from 0.05s to 300h, PNP voltage inputs, and DPDT 5A outputs. IP40 front panel.

Key Features

Eight multi-operating modes: ON-delay, Flicker OFF start, Flicker ON start, Signal ON/OFF-delay, Signal OFF-delay, Interval, Signal ON/OFF-delay, and One-shot.
Wide time setting range from 0.05 seconds up to 300 hours across 18 selectable ranges.
Voltage input (PNP type) compatible with solid-state sensors and advanced controllers.
Relay output with DPDT (2 changeover) contacts rated at 5 A, 250 VAC / 30 VDC resistive load.
Standardized 11-pin plug-in connection for ease of mounting, wiring, and replacement.
Compact 1/16 DIN (48 x 48 mm) front panel layout suitable for dense panel environments.
IP40 panel surface protection rating with high mechanical and electrical life expectancy.

Technical Specification Matrix

Parameter	Value
Supply Voltage	100 to 240 VAC (50/60 Hz) / 100 to 125 VDC
Operating Modes	A (ON-delay), B (Flicker OFF start), B2 (Flicker ON start), C (Signal ON/OFF-delay), D (Signal OFF-delay), E (Interval), G (Signal ON/OFF-delay), J (One-shot)
Time Range	0.05 s to 300 h
Number of Timing Ranges	18
Input Type	Voltage input (PNP type)
Output Type	DPDT relay (2 changeover contacts)
Contact Rating	5 A at 250 VAC / 30 VDC (resistive load)
Terminal Connection	11-pin socket
Insulation Resistance	100 MOhm min. (at 500 VDC)
IP Rating	IP40 (panel surface)
Operating Temperature	-10°C to 55°C (with no icing)
Storage Temperature	-25°C to 65°C (with no icing)
Ambient Humidity	35% to 85% RH
Mechanical Life	20,000,000 operations minimum
Electrical Life	100,000 operations minimum (at rated 5 A, 250 VAC resistive load)
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	6.66 x 4.8 x 4.8

Industrial Applications

1. Conveyor Belt Delay Start Control

Ensuring sequential startup of multiple cascading conveyor belts in industrial material handling facilities to prevent overall grid inrush current overload.

Problem Solved

Starting multiple conveyor motors simultaneously draws high inrush currents that can trip main circuit breakers. Configured in ON-delay mode (Mode A) with the DPDT relay output, the timer staggers downstream conveyor starts.

ON-delay modeInrush current reductionDPDT relay outputSequential startup11-pin timer

2. CNC Machine Guideway Lubrication Cycle

Controlling periodic automatic lubrication intervals for machine tool axes or reciprocating linear guideways.

Problem Solved

Over-lubrication wastes expensive lubricant and causes mess, whereas under-lubrication leads to rapid wear. Employing Flicker OFF start (Mode B) or Flicker ON start (Mode B2) allows automatic repeating ON/OFF cycles of the lubrication pump across a wide time range.

Flicker ON/OFF startCycle timing controlPump automationTime range 0.05s to 300h

3. VFFS Heat Seal Jaw Dwell Time Control

Managing the exact duration of heat-sealing jaw activation on vertical form-fill-seal (VFFS) packaging machines.

Problem Solved

Inconsistent heat activation yields bad packaging seals or melted plastic. Operating in One-shot mode (Mode J) and triggered by a PNP registration sensor, the timer energizes the seal element for a sub-second, highly precise duration independent of trigger pulse length.

One-shot modeVoltage input PNPHeat sealing dwell timeResistive load 5A
