USD 2,006.87
Panel-mounted PLC CPU with EtherNet/IP, EtherCAT, 2 synchronous axes, 3 MB program memory, and compact 90 mm cube format.

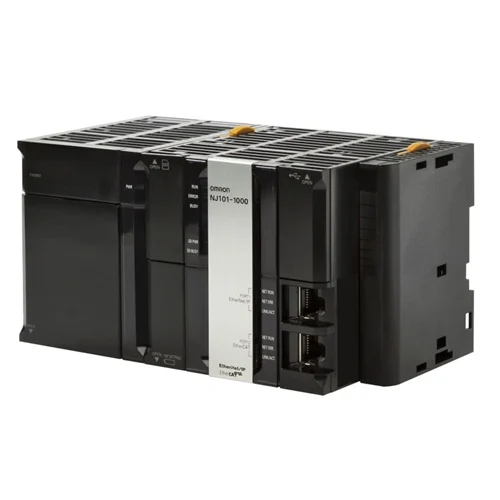

NJ1 machine automation CPU unit for motion and sequence control. Official OMRON documentation lists EtherNet/IP and EtherCAT built in, up to 2 synchronous axes, 6 total axes including virtual axes, 3 MB program memory, and 0.5 MB variable memory. The unit is a panel-mounted controller with compact 90 mm cube-format enclosure and 5 VDC 1.90 A current consumption.
| Parameter | Value |
|---|---|
| Controller functionality | Motion control, Sequence control |
| Max. number of synchronous axes | 2 |
| Max. number of axes (incl. virtual) | 6 |
| Primary task cycle time | 1 ms |
| Program memory | 3 MB |
| Variables memory | 0.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Enclosure | Mounted in a panel |
| Grounding method | Ground to less than 100 Ω |
| Dimensions (height × depth × width) | 90 mm × 90 mm × 90 mm |
| Weight | 550 g (including the End Cover) |
| Current consumption | 5 VDC, 1.90 A (including SD Memory Card and End Cover) |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 90% (with no condensation) |
| Atmosphere | Must be free from corrosive gases |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Altitude | 2,000 m or less |
| Pollution degree | 2 or less; meets IEC 61010-2-201 |
| Noise immunity | 2 kV on power supply line (IEC 61000-4-4) |
The 2 synchronous axes and EtherCAT master support fit compact indexing stations that need deterministic coordinated motion and sequence logic in one controller.
Eliminates separate PLC and motion controller hardware for small multi-axis machines.
The 6-axis capacity including virtual axes supports conveyor synchronization, transfer logic, and machine interlocks in a space-limited panel enclosure.
Provides coordinated control for compact automation cells with mixed real and virtual axes.
Built-in EtherNet/IP plus optional serial and fieldbus support makes it suitable for upgrading legacy equipment while preserving plant network integration.
Bridges older machine interfaces into modern plant networks without redesigning the entire architecture.
