20 MB motion-control CPU with EtherCAT, EtherNet/IP, OPC UA, and 16 axes for coordinated machine automation.

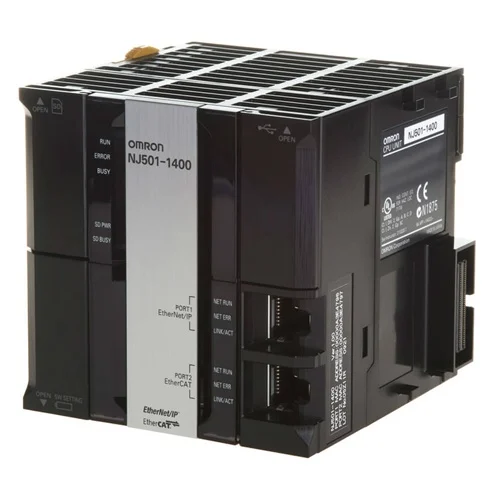

NJ-series CPU unit with built-in EtherCAT master and EtherNet/IP, designed for motion control and sequence control. Official Omron documentation lists 20 MB program capacity, 16 motion axes, OPC UA support, USB programming connection, DIN rail mounting, and 2,560 local I/O points with up to 66,560 points using NX I/O expansion. The product is positioned as a machine automation controller for coordinated motion and networked industrial control.
| Parameter | Value |
|---|---|
| Program capacity | 20 MB |
| Motion axes | 16 axes |
| Controller functionality | Motion control, OPC-UA, sequence control |
| Built-in communication ports | EtherCAT Master, EtherNet/IP, USB |
| Programming connection | USB / Ethernet |
| Mounting | DIN rail |
| I/O capacity | 2,560 points local; 66,560 points with NX I/O |
| Maximum number of units | 10 per CPU or expansion rack; 40 total per CPU |
| Flash memory port | SD |
| Min cycle time | 0.5 ms |
| Current consumption | 5 VDC, 1.90 A |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 90% (no condensation) |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Altitude | 2,000 m or less |
| Pollution degree | 2 or less |
| Dimensions (height × depth × width) | 90 mm × 90 mm × 90 mm |
| Weight | 550 g (including end cover) |
Use the 16-axis EtherCAT motion architecture to synchronize conveyors, pick-and-place heads, and sealing stations with sub-millisecond cycle timing.
Eliminates axis timing drift and simplifies coordinated motion in compact packaging lines.
The CPU can coordinate servo axes and discrete I/O in one controller, making it suitable for assembly machines with precise positioning and interlocked tooling.
Combines motion and sequence logic without separate PLC and motion controller hardware.
OPC UA and EtherNet/IP support make the controller suitable for machines that must exchange production data with SCADA, MES, and plant networks while running local control.
Provides machine-level control plus standardized data exchange for industrial connectivity.
