USD 6,955.09
20 MB CPU with EtherCAT/EtherNet/IP, 16 axes, 0.5 ms cycle time, 2,560-point I/O, DIN-rail mount.

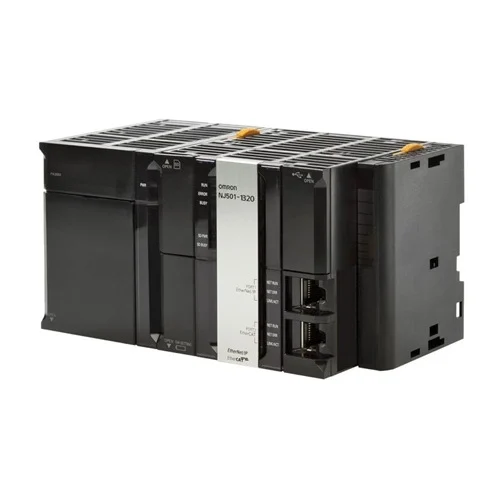

Sysmac NJ5 CPU module with database connectivity, 20 MB program memory, 6 MB variables memory, built-in EtherCAT and EtherNet/IP, and support for up to 16 motion axes. Manufacturer documentation lists 2,560-point I/O capacity, 40 configuration units across 3 expansion racks, 192 remote I/O nodes, 0.5 ms primary task cycle time, DIN-rail mounting, and unpacked dimensions of 96 × 90 × 150 mm with 550 g mass. ([automation.omron.com](https://automation.omron.com/en/us/products/family/NJ501/NJ501-1320?utm_source=openai))
| Parameter | Value |
|---|---|
| Controller functionality | DB connection, motion control, sequence control |
| Program memory | 20 MB |
| Variables memory | 6 MB |
| Max. number of synchronous axes | 16 |
| Max. number of axes (incl. virtual) | 16 |
| Primary task cycle time | 0.5 ms |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 192 |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
| I/O capacity | 2,560 points |
| Expansion racks | 3 |
| Mounting | DIN rail |
| Product height (unpacked) | 96 mm |
| Product width (unpacked) | 90 mm |
| Product depth (unpacked) | 150 mm |
| Product weight (unpacked) | 550 g |
The 0.5 ms cycle time, built-in EtherCAT, and 16-axis capability fit coordinated packaging machines with synchronized servos, feeders, and cutters.
Eliminates coordination lag in tightly synchronized motion systems.
Database connection support with 20 MB program memory makes it suitable for machines that must exchange production records, IDs, or recipe data with enterprise systems.
Provides direct machine-to-database integration without an external gateway controller.
The 2,560-point I/O capacity, 40 expansion units, and 192 remote I/O nodes suit modular machines with many sensors, valves, and distributed I/O blocks.
Supports large I/O counts while preserving a single deterministic control platform.
