USD 7,703.20
20 MB CPU with SQL database connectivity, built-in EtherCAT/EtherNet/IP, 32 axes, DIN-rail mounting.

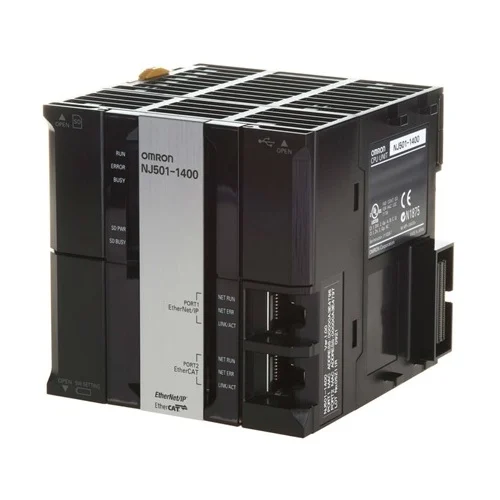

Sysmac NJ5 CPU module with database connectivity, 20 MB program capacity, built-in EtherCAT and EtherNet/IP, and support for 32 motion axes. Omron lists the unit for DIN-rail mounting with USB/Ethernet programming connection and SQL database functionality. The NJ-series catalog identifies it as an NJ501 CPU Unit with 2,560 points / 40 units maximum I/O capacity across 3 expansion racks and 1.90 A current consumption on 5 VDC. Distributor listings confirm the exact manufacturer part number and product class as a PLC/PAC controller.
| Parameter | Value |
|---|---|
| Special function | SQL Database |
| Program capacity | 20 MB |
| I/O capacity | 2,560 points local (66,560 with NX I/O) |
| Maximum number of units | 10 per CPU or expansion rack; 40 total per CPU |
| Flash memory port | SD |
| Total axes / Point-to-point axes / Coordinated axes | 32 / 0 / 32 |
| Minimum cycle time | 0.5 ms |
| Motion control network | EtherCAT |
| Programming language | Ladder / Structured Text / Function Block |
| Communication ports | EtherCAT and EtherNet/IP built in |
| Programming connection | USB / Ethernet |
| Mounting | DIN Rail |
| I/O capacity / maximum number of configuration units | 2,560 points / 40 Units (3 Expansion Racks) |
| Memory capacity for variables | 2 MB retained during power interruption; 4 MB not retained during power interruption |
| Number of motion axes | 32 |
| Current consumption (5 VDC) | 1.90 A |
Controls synchronized servo axes on fast packaging equipment where deterministic motion and EtherCAT coordination are required.
Eliminates timing drift and simplifies multi-axis synchronization in high-speed packaging lines.
Integrates machine control with SQL database connectivity for production traceability, recipe management, and event logging.
Combines PLC logic and database interaction in one controller, reducing external PC dependence.
Fits modular machine architectures using local I/O plus NX expansion for scalable control across multiple racks.
Provides scalable I/O and controller capacity for OEMs building configurable platforms.
