USD 1,932.06
24 VDC NX1 CPU with EtherCAT master, dual EtherNet/IP, 5 MB program memory, 33.5 MB variables, 64 remote I/O nodes.

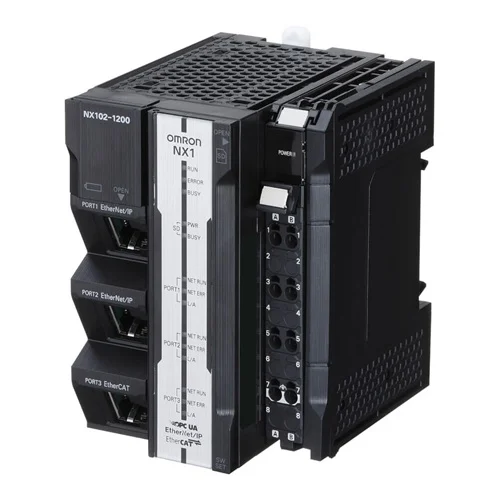

NX1 Machine Automation Controller CPU module with built-in EtherCAT master, dual EtherNet/IP ports, OPC UA, SQL/MQTT support, and NX I/O Bus expansion. The verified NX102-1020 configuration supports DB connection, motion control, sequence control, and position control with up to 2 synchronous axes, 4 PTP axes, 15 total axes including virtual, 5 MB program memory, 33.5 MB variable memory, 64 remote I/O nodes, and up to 32 expansion units. It is a DIN-rail mounted controller for panel installation with a 24 VDC unit power supply and industrial environmental ratings verified in Omron specifications.
| Parameter | Value |
|---|---|
| Unit power supply | 24 VDC |
| NX Unit power supply capacity | 10 W max. |
| NX Unit power supply efficiency | 80% |
| Program memory | 5 MB |
| Variable memory | 33.5 MB |
| Max. number of synchronous axes | 2 |
| Max. number of PTP axes | 4 |
| Max. number of axes (incl. virtual) | 15 |
| Primary task cycle time | 1 ms |
| Communication ports | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option ports | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 64 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 32 |
| Mounting | DIN rail |
| Enclosure | Mounted in a panel |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 95% (with no condensation) |
| Ambient storage temperature | -25 to 70°C (excluding battery) |
| Altitude | 2,000 m max. |
| Pollution degree | 2 or less |
| Noise immunity | 2 kV on power supply line |
| Overvoltage category | Category II |
| EMC immunity level | Zone B |
| Vibration resistance | 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s² |
| Shock resistance | 147 m/s² |
| Battery life | 5 years (power OFF time rate 0%) |
| Applicable standards | cULus, EU, UKCA, RCM, KC, NK, LR |
The 2 synchronous axes, 4 PTP axes, 1 ms cycle time, and EtherCAT master make it suitable for coordinated packaging machinery with real-time servo synchronization.
Maintains deterministic motion timing across multiple axes in compact packaging equipment.
The DB connection capability with OPC-UA, SQL, and large variable memory supports production cells that must log process data and exchange information with higher-level systems.
Enables machine-to-database connectivity without adding an external industrial PC.
With up to 64 remote I/O nodes and 32 expansion units on the NX I/O Bus, it fits modular machine architectures requiring dense distributed I/O.
Scales I/O and machine sections without redesigning the base controller architecture.
