24 VDC NX1 CPU with DB connection, EtherCAT master, EtherNet/IP, OPC UA, 5 MB program memory, 33.5 MB variables memory.

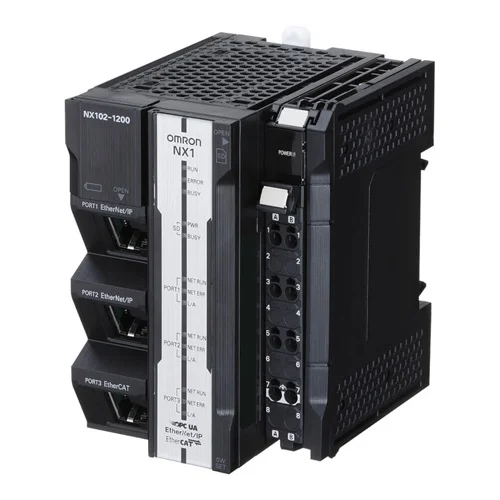

NX102-1120 is an OMRON NX1 database connection CPU unit for the Sysmac platform. Official OMRON specifications identify it as a 24 VDC controller with DB connection, motion control, OPC UA, position control, and sequence control. It supports EtherCAT Master, EtherNet/IP, and Ethernet TCP/IP communication, with optional serial RS-232C/RS-422/RS-485 interfaces. Published engineering data lists 5 MB program memory, 33.5 MB variables memory, up to 4 synchronous axes, 4 PTP axes, 15 total axes including virtual axes, 64 remote I/O nodes, and 32 expansion units. Unpacked physical size is 100 × 66 × 100 mm and weight is 470 g.
| Parameter | Value |
|---|---|
| Controller functionality | DB connection, Motion control, OPC-UA, Position control, Sequence control |
| Rated supply / operating voltage | 24 VDC |
| Max. number of synchronous axes | 4 |
| Max. number of PTP axes | 4 |
| Max. number of axes (incl. virtual) | 15 |
| Primary task cycle time | 1 ms |
| Program memory | 5 MB |
| Variables memory | 33.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 64 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 32 |
| Product height (unpacked) | 100 mm |
| Product width (unpacked) | 66 mm |
| Product depth (unpacked) | 100 mm |
| Product weight (unpacked) | 470 g |
The 1 ms task cycle, EtherCAT master capability, and support for up to 4 synchronous axes make it suitable for coordinated packaging motion such as conveyors, cutters, and pick-and-place stations.
Synchronizing multiple servo axes with deterministic timing in compact packaging machinery.
DB connection plus OPC UA and EtherNet/IP support allow the controller to exchange machine state and production data with higher-level systems while running the cell logic locally.
Bridging machine control and plant IT/SCADA systems without an additional gateway controller.
NX I/O Bus support, 64 remote I/O nodes, and up to 32 expansion units make it well suited for scalable machinery that must grow from a base station to a larger distributed system.
Providing a compact controller that can scale with machine complexity and distributed sensing/actuation needs.
