CPU unit with EtherCAT and EtherNet/IP, 5 MB program memory, 33.5 MB variable memory, 8 synchronous axes, 64 remote I/O nodes.

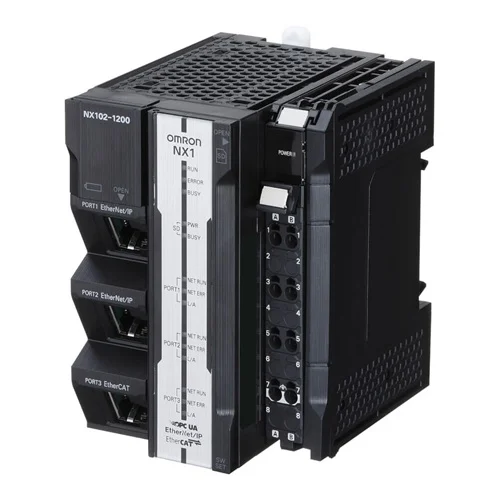

NX102-1200 is an Omron NX1 machine automation CPU unit with built-in EtherNet/IP and EtherCAT networking, designed for coordinated motion and sequence control. Manufacturer documentation lists 5 MB program capacity, 33.5 MB variable memory, up to 8 synchronous axes, up to 4 PTP axes, 15 total axes including virtual axes, 64 remote I/O nodes, and support for 32 expansion units. Unpacked dimensions are 100 mm × 66 mm × 100 mm and unpacked weight is 470 g.
| Parameter | Value |
|---|---|
| Controller functionality | Motion control, OPC-UA, Position control, Sequence control |
| Program memory | 5 MB |
| Variables memory | 33.5 MB |
| Max. number of synchronous axes | 8 |
| Max. number of PTP axes | 4 |
| Max. number of axes (incl. virtual) | 15 |
| Primary task cycle time | 1 ms |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 64 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 32 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 66 mm |
| Product Depth (unpacked) | 100 mm |
| Product Weight (unpacked) | 470 g |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 95% (with no condensation) |
| Ambient storage temperature | -25 to 70°C (excluding battery) |
| Altitude | 2,000 m max. |
| Pollution degree | 2 or less |
| Noise immunity | 2 kV on power supply line |
| Overvoltage category | Category II |
| EMC immunity level | Zone B |
| Vibration resistance | 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2 |
| Shock resistance | 147 m/s2, 3 times in X, Y, and Z directions |
The controller’s EtherCAT motion network and support for up to 8 synchronous axes make it suitable for synchronized conveyor, feeder, and sealing stations.
Keeps multiple axes phase-locked to reduce registration errors and machine timing drift.
The 66 mm by 100 mm by 100 mm footprint and support for up to 32 expansion units fit compact skid or panel builds needing scalable I/O and logic.
Provides dense control capability without forcing a large cabinet footprint.
Built-in EtherNet/IP and support for up to 64 remote I/O nodes suit distributed machine architectures with local and remote modules.
Reduces hardwiring and simplifies integration of distributed machine sections.
