USD 1,611.44

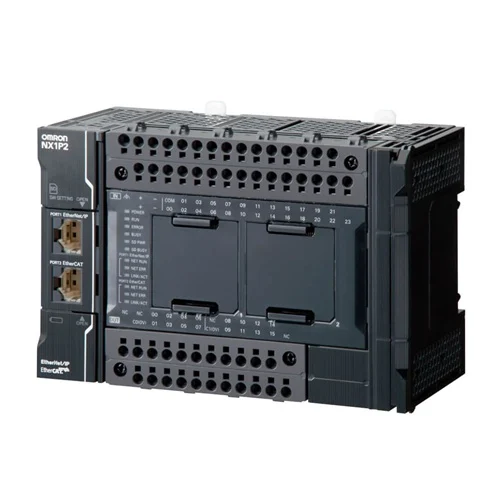

24 VDC machine controller with EtherCAT/EtherNet/IP, 24 inputs, 16 NPN outputs, 1.5 MB program memory, 6-axis control.
NX-series machine automation CPU unit with 1.5 MB program memory, built-in EtherCAT and EtherNet/IP communications, 24 built-in inputs, 16 NPN transistor outputs, and support for 6 total axes / 2 motion axes / 4 single-axis position control axes. The unit accepts 24 VDC supply and is DIN-rail mounted for compact panel automation systems.
| Parameter | Value |
|---|---|
| Power supply voltage | 24 VDC (20.4 to 28.8 VDC) |
| Unit power consumption | 7.05 W |
| Inrush current | 10 A max./0.1 ms max.; 2.5 A max./150 ms max. (cold start at room temperature) |
| Current capacity of power supply terminal | 4 A max. |
| Program capacity | 1.5 MB |
| Built-in inputs | 24 points |
| Built-in outputs | 16 points, NPN transistor |
| Max total axes / motion axes / single-axis position control axes | 6 / 2 / 4 |
| Communication ports | EtherCAT ×1, EtherNet/IP ×1 |
| Mounting | DIN rail |
| Dimensions | 154 × 100 × 71 mm (W × H × D), including End Cover and excluding projecting parts |
| Weight | 650 g, including End Cover |
| Output type | NPN (sinking) |
| Maximum switching capacity | 12 to 24 VDC (10.2 to 28.8 VDC), 300 mA per point |
| Minimum switching capacity | 1 mA |
| Leakage current | 0.1 mA max. |
| Residual voltage | 1.5 V max. |
| ON response time | 0.1 ms max. |
| OFF response time | 0.8 ms max. |
| NX bus connector capacity | 8 NX Units can be connected |
Controls coordinated motion, discrete I/O, and field network communication in a compact enclosure for small packaging lines.
Replaces separate PLC and motion controller hardware while supporting synchronized axes and built-in I/O.
Provides fast transistor outputs and motion control for indexing tables, gantries, and pick-and-place sequences.
Enables low-latency output switching and deterministic axis coordination in a single controller.
Serves as the controller core for machines that need local NX unit expansion and networked integration to upstream systems.
Supports modular expansion through NX bus connectivity while maintaining compact control-panel footprint.
