1.5 MB CPU with EtherCAT, EtherNet/IP, 40-point NPN I/O, 12 axes, SD memory, DIN-rail mounting.

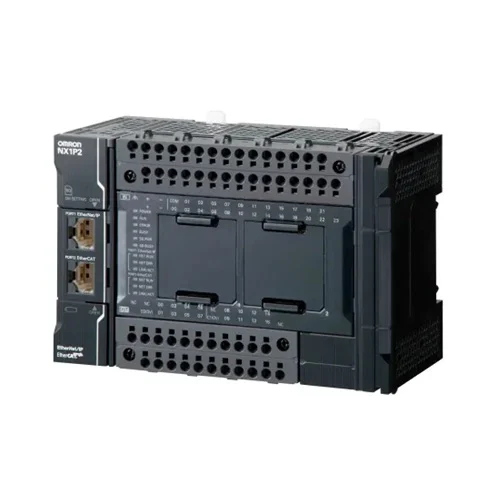

NX-series machine automation CPU unit with 1.5 MB program capacity, built-in EtherCAT and EtherNet/IP, 40-point NPN transistor I/O, and support for 12 controlled axes. Official Omron documentation identifies it as a DIN-rail-mounted NX1P2 CPU Unit with 24 inputs and 16 outputs, two option board slots, SD memory support, and a 24 VDC unit power supply. The hardware manual lists a compact 154 × 100 × 71 mm enclosure and 650 g weight including the end cover.
| Parameter | Value |
|---|---|
| Program capacity | 1.5 MB |
| Memory capacity for variables | 32 kB retained during power interruptions or 2 MB not retained during power interruptions |
| Maximum number of controlled axes | 12 axes |
| Built-in I/O total | 40 points |
| Built-in inputs | 24 points |
| Built-in outputs | 16 points, NPN transistor |
| Motion control network | EtherCAT |
| Built-in communications | EtherCAT and EtherNet/IP |
| Programming connection | Ethernet |
| Programming languages | Ladder, Structured Text, Function Block |
| Mounting | DIN rail |
| Unit power supply | 24 VDC |
| Option board slots | 2 |
| Enclosure dimensions | 154 × 100 × 71 mm (W × H × D) |
| Weight | 650 g |
| NX bus connector support | Up to 8 NX Units can be mounted on the CPU rack |
| Power consumption | 7.05 W |
Controls synchronized conveyor, feeder, and sealing axes where high-speed EtherCAT coordination and 12-axis capability are needed.
Eliminates controller fragmentation by combining motion control and built-in machine I/O in one CPU.
Fits small DIN-rail control panels that need deterministic logic, EtherNet/IP connectivity, and local discrete I/O for sensors and actuators.
Reduces cabinet space while providing industrial Ethernet integration and direct device wiring.
Suitable for indexing tables, pick-and-place stations, and light assembly cells requiring coordinated axis control plus local digital interlocks.
Provides synchronized multi-axis control with enough embedded I/O for interlocks, homing, and safety-adjacent sequencing.
