USD 1,718.31

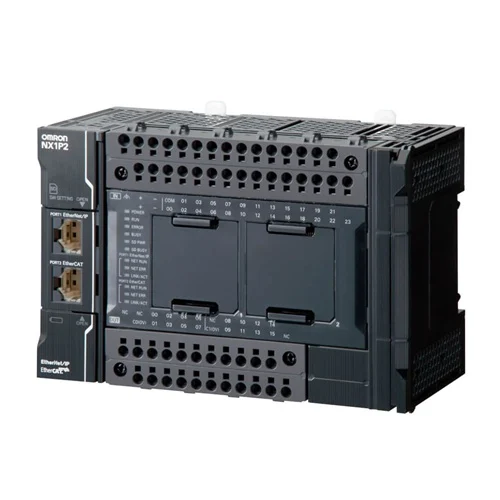

DIN-rail machine controller CPU with 1.5 MB program memory, 40 built-in I/O, EtherCAT, EtherNet/IP, and PNP transistor outputs.
DIN-rail machine controller CPU with 1.5 MB program memory, 40 built-in I/O, EtherCAT, EtherNet/IP, and PNP transistor outputs.
| Parameter | Value |
|---|---|
| Program capacity | 1.5 MB |
| Built-in I/O points | 40 points |
| Input points | 24 points |
| Output points | 16 points |
| Output type | PNP transistor |
| Motion control network | EtherCAT |
| Built-in communications | EtherCAT and EtherNet/IP |
| Mounting | DIN rail |
| Programming languages | Ladder / Structured Text / Function Block |
| Min cycle time | 2 ms |
| Total axes / point-to-point axes / coordinated axes | 8 / 4 / 4 |
| Maximum number of units | 8 local IO units; 24 total per CPU |
| Special function | NX Local Bus |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 95% (non-condensing) |
| Altitude | 2,000 m or less |
| Pollution degree | 2 or less |
| Grounding | Less than 100 Ω |
| Enclosure | Mounted in a panel |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
The 2 ms cycle time, integrated 40-point I/O, and EtherCAT motion network suit coordinated packaging sequences with synchronized actuators and sensors.
Reduces cycle-time bottlenecks and simplifies multi-axis machine coordination.
The controller’s built-in EtherCAT, EtherNet/IP, and DIN-rail format make it a strong fit for compact conveyor cells that need networked motion and standard I/O in one CPU.
Eliminates a separate motion controller and shrinks cabinet footprint.
With support for NX Local Bus and up to 8 local IO units, the CPU can manage modular assembly equipment that expands with machine sections.
Supports scalable machine architectures without redesigning the core controller.
