USD 1,098.45
24-point NPN transistor CPU with EtherCAT, EtherNet/IP, 1.5 MB memory, DIN-rail mount, 24 VDC supply.

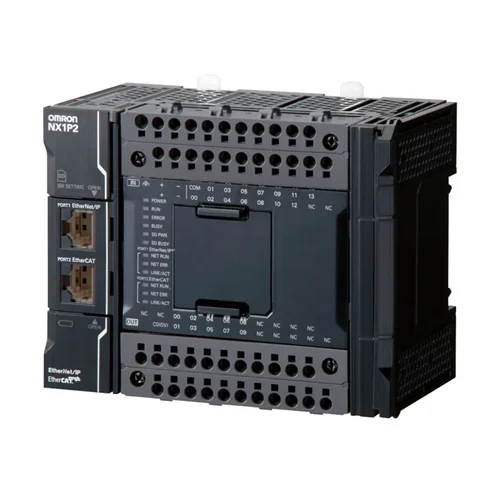

Sysmac NX1P CPU module with 24 digital transistor I/O (NPN), 1.5 MB program memory, built-in EtherCAT and EtherNet/IP, and 1 serial option port. Designed for compact machine automation with local NX bus expansion, DIN-rail mounting, and integrated motion-control capability. Official Omron documentation confirms 24 VDC supply, 130 × 100 × 71 mm enclosure dimensions, and 6.70 W unit power consumption for the NX1P2-9024DT model.
| Parameter | Value |
|---|---|
| Model | NX1P2-9024DT |
| Program capacity | 1.5 MB |
| I/O capacity | 296 points local (808 with NX Coupler) |
| Maximum number of units | 8 Local I/O Units; 24 total per CPU |
| Motion control network | EtherCAT |
| Built-in communication ports | EtherCAT and EtherNet/IP |
| Programming languages | Ladder / Structured Text / Function Block |
| Mounting | DIN rail |
| Unit power supply voltage | 24 VDC (20.4 to 28.8 VDC) |
| Unit power consumption | 6.70 W |
| Inrush current | 10 A max./0.1 ms max. and 2.5 A max./150 ms max. |
| Current capacity of power supply terminal | 4 A max. |
| Isolation method | No isolation between the unit power supply terminal and internal circuit |
| Dimensions (W × H × D) | 130 × 100 × 71 mm |
| Weight | 590 g |
| Input voltage | 24 VDC (15 to 28.8 VDC) |
| General-purpose input A terminal number | 00 to 13 |
| Input current (general-purpose input A) | 5.3 mA typical |
| Input impedance (general-purpose input A) | 4.3 kΩ |
| ON voltage | 15 VDC min. |
| OFF voltage/current | 5 VDC max./1 mA max. |
| ON response time | 1 ms max. |
| OFF response time | 1 ms max. |
| ON/OFF filter time | No filter, 0.25 ms, 0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms |
A small packaging cell can use the integrated CPU, local I/O, and EtherCAT motion networking to coordinate sensors, drives, and actuators in a tight panel footprint.
Eliminates the need for a separate controller and external motion gateway in space-constrained machines.
The 24 VDC digital I/O and fast response characteristics support sensor-based indexing, reject gating, and status signaling for compact conveyor automation.
Provides deterministic control for discrete sensor-to-actuator sorting logic with minimal wiring complexity.
Built-in EtherCAT and multi-axis PTP capability support a compact assembly machine that needs coordinated servo moves, interlocks, and networked field devices.
Combines motion networking and PLC logic in one controller for compact synchronized automation.
