Compact 24 VDC PLC CPU with 24 PNP outputs, EtherCAT/EtherNet/IP, 1.5 MB memory, and integrated motion control.

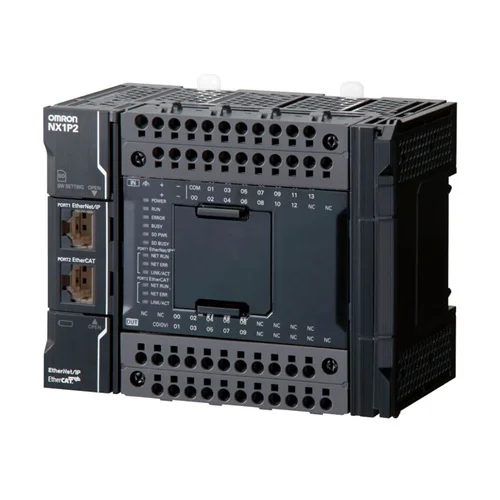

Sysmac NX1P2 CPU unit with 24 built-in digital transistor outputs in PNP sourcing form, 1.5 MB program memory, EtherCAT and EtherNet/IP communications, and a 24 VDC unit power supply. The device is a DIN-rail mounted machine automation controller intended for compact high-performance machine control with integrated motion and local I/O expansion. Verified manufacturer sources indicate the exact NX1P2-9024DT1 variant has 130 × 100 × 71 mm dimensions, 590 g weight, 24 VDC supply range of 20.4 to 28.8 VDC, 6.40 W unit power consumption, and load short-circuit protection on outputs.
| Parameter | Value |
|---|---|
| Product family | NX1P2 CPU Units |
| Built-in I/O | 24 digital transistor outputs |
| Output type | PNP (sourcing) |
| Program capacity | 1.5 MB |
| Unit power supply voltage | 24 VDC (20.4 to 28.8 VDC) |
| Unit power consumption | 6.40 W |
| Inrush current | 10 A max./0.1 ms max.; 2.5 A max./150 ms max. at cold start, room temperature |
| Current capacity of power supply terminal | 4 A max. |
| Maximum switching capacity | 24 VDC (15 to 28.8 VDC), 300 mA per point |
| Minimum switching capacity | 24 VDC (15 to 28.8 VDC), 1 mA |
| Current consumption from I/O power supply | 50 mA/common |
| Load short-circuit protection | Provided |
| Dimensions (W × H × D) | 130 × 100 × 71 mm |
| Weight | 590 g |
| Mounting | DIN rail |
| Motion control network | EtherCAT |
| Built-in communications | EtherCAT and EtherNet/IP |
| Total axes / PTP / coordinated axes | 4 / 4 / 0 |
| Minimum cycle time | 2 ms |
Coordinates small packaging machines that need fast discrete output switching, integrated EtherCAT motion, and networked I/O in a compact controller.
Replaces separate PLC, motion, and comms modules in space-constrained equipment while maintaining deterministic control.
Drives indexing conveyors and auxiliary actuators where 4 PTP axes and 2 ms cycle time support responsive sequencing and position control.
Enables coordinated motion and high-speed sequencing without a separate motion controller.
Provides local 24 VDC control for fixtures, solenoids, and sensors in modular assembly cells that require short-circuit-protected sourcing outputs.
Simplifies panel wiring and improves fault tolerance for dense actuator clusters.
