USD 5,993.23
80 MB program memory, 128 axes, EtherCAT master, dual EtherNet/IP ports, 0.125 ms cycle time, DIN-rail CPU module.

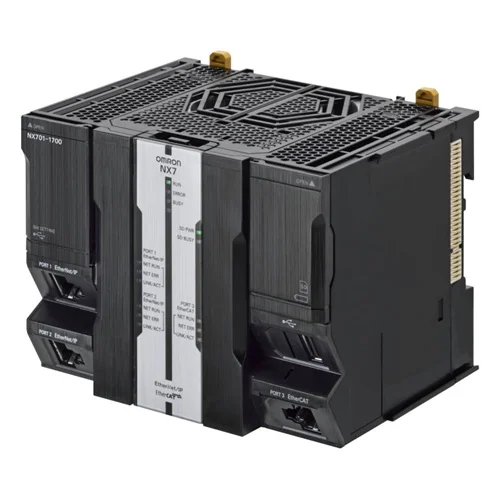

NX7-series machine automation controller CPU module with 80 MB program memory, 260 MB variables memory, built-in EtherCAT master, dual EtherNet/IP ports, and support for motion control, sequence control, and OPC UA. Official Omron product pages and datasheets identify it as a DIN-rail mounted controller with 128 synchronized axes, 512 remote I/O nodes, and a 0.125 ms primary task cycle time.
| Parameter | Value |
|---|---|
| Program memory | 80 MB |
| Variables memory | 260 MB |
| Max. synchronous axes | 128 |
| Max. axes including virtual | 128 |
| Primary task cycle time | 0.125 ms |
| Communication ports | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication options | None |
| Max. remote I/O nodes | 512 |
| I/O system | NX I/O Bus |
| Max. expansion units | 0 |
| Product height (unpacked) | 100 mm |
| Product width (unpacked) | 132 mm |
| Product depth (unpacked) | 100 mm |
| Product weight (unpacked) | 880 g |
| Mounting | DIN rail |
| Controller functionality | Motion control, sequence control, OPC UA |
| Supply voltage | 24 VDC |
The 128-axis EtherCAT motion capability and 0.125 ms task cycle suit synchronized pack, place, seal, and cut stations that must stay phase-locked at high speed.
Eliminates motion lag and axis coordination errors in multi-station packaging lines.
Dual EtherNet/IP connectivity plus EtherCAT master control support deterministic coordination between PLC logic, drives, scanners, and distributed I/O in conveyor sortation systems.
Provides fast deterministic control for distributed conveyor zones and device communication.
OPC UA support and large variables memory make it suitable for production cells that need machine data exchange, diagnostics, and supervisory integration while maintaining real-time control.
Bridges real-time machine control with plant-level data access and monitoring.
