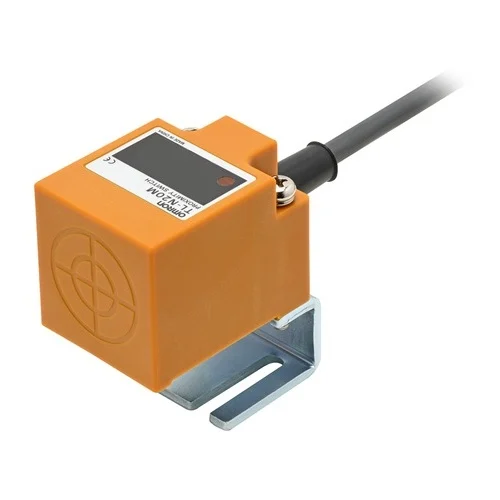

Omron TL-N20MD2 2M is an unshielded 20 mm DC 2-wire NC proximity sensor with a 2 m cable and IP67 protection.
The Omron TL-N20MD2 2M is an unshielded rectangular inductive proximity sensor with a 20 mm nominal sensing distance, DC 2-wire normally-closed output and a 2 m pre-wired cable. It operates from 10 to 30 VDC (rated 12 to 24 VDC) and detects ferrous metal targets; non-ferrous targets reduce sensing range. The sensing head measures 40 x 41 x 53 mm. Omron lists IEC IP67 protection and its internal oil-proof standard. Omron listed this exact model as selling and standard-stock on 2026-10-05, with stock indicator －.
An unshielded 20 mm inductive proximity sensor with a DC 2-wire normally-closed output for ferrous targets.
| Parameter | Value |
|---|---|
| Product type | Rectangular unshielded inductive proximity sensor |
| Sensing distance | 20 mm ±10% |
| Setting distance | 0 to 16 mm |
| Differential distance | 10% max. of sensing distance |
| Standard sensing object | Iron, 50 x 50 x 1 mm |
| Sensing target material | Ferrous metal; sensing distance decreases with non-ferrous metals |
| Response frequency | 300 Hz average |
| Power supply voltage | 12 to 24 VDC, ripple 10% p-p max. |
| Operating voltage range | 10 to 30 VDC |
| Leakage current | 0.8 mA max. |
| Control output | DC 2-wire, normally-closed; 3 to 100 mA switching capacity |
| Residual voltage | 3.3 V max. at 100 mA load with 2 m cable |
| Indicator | Operation indicator (red) |
| Protection rating | IEC IP67; Omron internal oil-proof standard |
| Connection | Pre-wired, 2 m cable |
| Sensing head dimensions | 40 x 41 x 53 mm |
| Housing material | Heat-resistant ABS resin |
| Accessories | Instruction manual, mounting bracket and Phillips mounting screw |
| Physical Weight (kg) | 0.330 (approx., packaged). |
| Dimensions L x W x H (cm) | See the Omron drawing; manufacturer lists the sensing head size as 40 x 41 x 53 mm (cable excluded). |
| Supply status | Active; Omron listed TL-N20MD2 2M as selling and standard-stock on 2026-10-05; stock indicator －. |
Engineering suggestions require suitability checks for your installation.
The sensor detects ferrous metal at a nominal 20 mm distance.
Position the ferrous target within the 0 to 16 mm setting distance and verify detection with its actual size and orientation.
The NC DC 2-wire output can signal a machine part entering the sensing zone.
Connect to a compatible 10 to 30 VDC circuit, account for sensor leakage current, and maintain Omron clearance recommendations.
