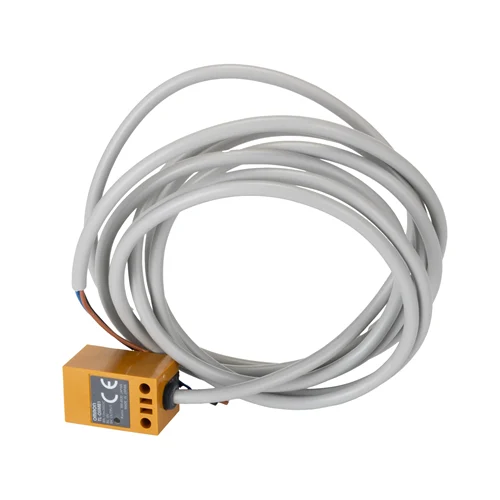

Omron TL-Q5MB1-Z 2M rectangular inductive sensor with 5 mm sensing, PNP normally open output and a 2 m pre-wired cable.
The Omron TL-Q5MB1-Z 2M is an unshielded rectangular inductive proximity sensor for detecting ferrous targets at a nominal 5 mm sensing distance. Its DC three-wire PNP open-collector output is normally open, with a 12 to 24 VDC rated supply and a 2 m pre-wired cable. The TL-Q family is specified for IP67 protection and operation from -25 to 70 °C; current supply status for the exact -Z suffix is not confirmed.
Unshielded 5 mm inductive sensor with PNP normally open output and 2 m cable.
| Parameter | Value |
|---|---|
| Sensing principle | Inductive proximity sensing |
| Sensor format | Unshielded rectangular body; 17 × 17 mm face |
| Sensing distance | 5 mm ±10% |
| Set distance | 0 to 4 mm |
| Detectable object | Ferrous metal |
| Standard sensing object | Iron, 15 × 15 × 1 mm |
| Response frequency | 500 Hz |
| Response time | 2 ms max. |
| Output | DC 3-wire PNP open collector; 50 mA max. at 30 VDC max.; normally open |
| Power supply | 12 to 24 VDC rated (10 to 30 VDC operating range), 10% max. ripple |
| Current consumption | 10 mA max. at 24 VDC |
| Residual voltage | 1 V max. at 50 mA load and 2 m cable |
| Connection method | Pre-wired 2 m cable |
| Operating temperature | −25 to 70 °C; no icing or condensation |
| Storage temperature | −25 to 70 °C; no icing or condensation |
| Relative humidity | 35% to 95%, non-condensing |
| IP rating | IP67 (IEC 60529) |
| Housing material | Heat-resistant ABS |
| Physical Weight (kg) | Approx. 0.090 kg, packed state |
| Dimensions L x W x H (cm) | 1.7 × 1.7 cm sensing face; overall depth shown in the official dimensional drawing |
Engineering suggestions require suitability checks for your installation.
A machine may need a PLC input when a steel target enters a monitored position.
The normally open PNP output can provide a sourcing signal as a suitable target enters the 5 mm sensing zone; verify PLC input compatibility.
A conveyor or assembly fixture may need contactless detection of a nearby metal part.
Mount the unshielded sensor with the target within the specified set distance and connect its 2 m lead to a compatible DC input.
