USD 15.82

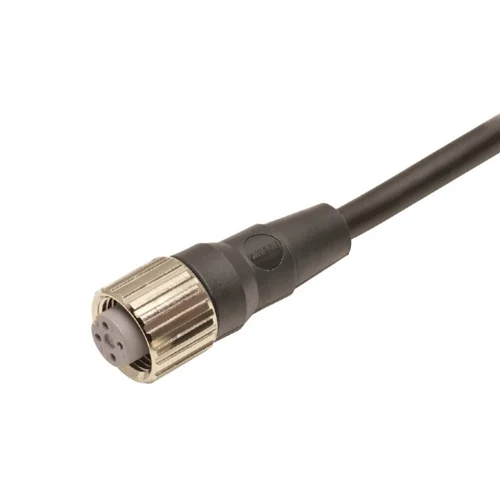

Omron XS2F-M12PVC4S2M: 4-pin M12 straight female connector, PVC cable, 2 m, IP67.
The Omron XS2F-M12PVC4S2M is a single-ended sensor cable with an M12 straight female socket and 4 contacts. It uses fire-retardant PVC cable with open wire ends and a 2 m cable length. The XS2 connector family is rated IP67 for industrial sensor connections.
4-pole M12 straight sensor cordset with PVC cable and open wire ends.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Single-ended sensor cable with connector |
| Connector | M12 A-coded female socket, straight |
| Contacts | 4 poles |
| Cable end | Open wire ends |
| Cable material | Fire-retardant PVC |
| Cable length | 2 m |
| Ingress protection | IP67 |
| Rated current | 4 A (XS2 family rating) |
| Rated voltage | AC/DC 250 V (XS2 family rating) |
| Operating temperature | -25 to 70°C (XS2 family rating) |
| Physical Weight (kg) | Not stated in the checked manufacturer data. |
| Dimensions L x W x H (cm) | Cable assembly dimensions depend on connector geometry; complete overall L × W × H not stated. |
| Supply status | Unknown; exact variant specifications confirmed, current supply status not established. |
Engineering suggestions require suitability checks for your installation.
Connect an M12 sensor to an open-ended cabinet or junction-box termination.
Match the connector pin count and sensor wiring diagram before terminating the open wire end.
Route a sealed sensor connection in equipment exposed to dust or water.
Select the cable exit direction and length to suit the installation and maintain the connector seal.
