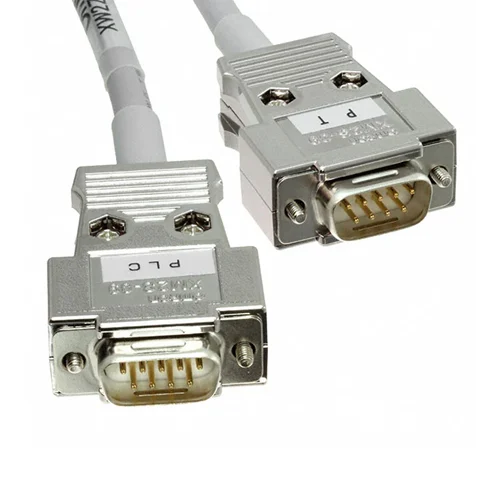

2 m RS-232C D-sub 9-pin plug-to-plug interface cable; 125 VAC, 1 A, 500 VAC dielectric strength, 0 to 80 °C.
PT-PLC connecting cable for RS-232C communication, specified by Omron as a 2 m UL2464 interface cable with D-sub 9-pole plug connectors on both ends. Official Omron documentation lists 125 VAC supply voltage rating, 1 A rated current, 100 MΩ minimum insulation resistance at 500 VDC, 500 VAC dielectric strength for 1 minute with 1 mA max leakage current, and 0 to 80 °C operating temperature. The product is sold as a standard-stock item for programmable terminal to PLC connection use.
| Parameter | Value |
|---|---|
| Cable type | UL2464 interface cable |
| Cable length | 2 m |
| Connector 1 | D-sub, 9-pole, plug |
| Connector 2 | D-sub, 9-pole, plug |
| Power supply voltage | 125 VAC |
| Rated current | 1 A |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min (leakage current 1 mA max.) |
| Ambient operating temperature | 0 to 80 °C |
| Product status | Standard stock item |
| Application | PT-PLC connecting cable / RS-232C |
Used to link a programmable terminal to a PLC over RS-232C with a verified 2 m plug-to-plug cable length for control panel routing.
Eliminates ad hoc field wiring and ensures a standard serial interface between operator terminal and controller.
Fits short-distance panel interconnects where a preassembled, factory-terminated cable is needed between HMI and controller nodes.
Reduces installation time and wiring errors in retrofit panels with limited internal space.
Appropriate where a serial link must meet defined insulation and dielectric requirements under moderate industrial electrical stress.
Supports safer signal interconnects by using a cable rated for 100 MΩ insulation resistance and 500 VAC dielectric strength.
