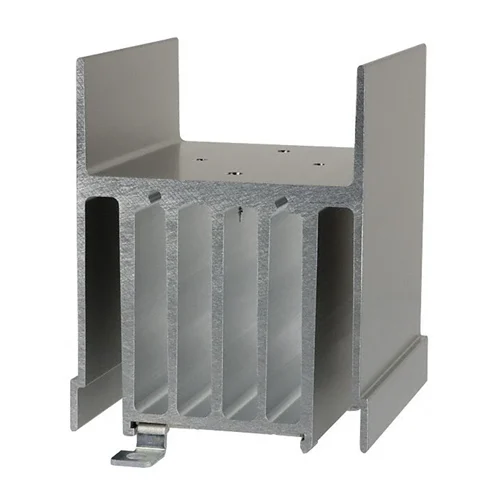

Omron Y92B-N100 external heat sink for compatible G3NA and G3NE solid-state relays; 1.63 °C/W thermal resistance.
The Omron Y92B-N100 is an external heat sink for compatible Omron solid-state relays. Omron identifies it for specified G3NA and G3NE relay models and rates the heat sink at 1.63 °C/W thermal resistance. Select it with the relay and load current using Omron's thermal derating guidance; supply status is Unknown.
1.63 °C/W external heat sink for compatible Omron G3NA and G3NE solid-state relays.
| Parameter | Value |
|---|---|
| Accessory type | Heat sink for solid-state relays |
| Compatible products | Omron G3NA-220B, G3NA-420B, G3NE-220T(L)-US |
| Thermal resistance | 1.63 °C/W |
| Weight | Approx. 400 g (packed state) |
| Material | Aluminum heat sink; confirm exact alloy from drawing |
| Physical Weight (kg) | 0.400 kg (approx., packed state) |
| Dimensions L x W x H (cm) | Refer to Omron mechanical drawing for mounting orientation and envelope |
Engineering suggestions require suitability checks for your installation.
Dissipate heat from a compatible SSR in a control panel.
Match the heat sink to the relay and load current, then apply Omron ambient-temperature and mounting derating guidance.
Provide an external heat-dissipation surface for a compatible relay installation.
Verify clearance, orientation and airflow against the relay and heat-sink installation instructions.
