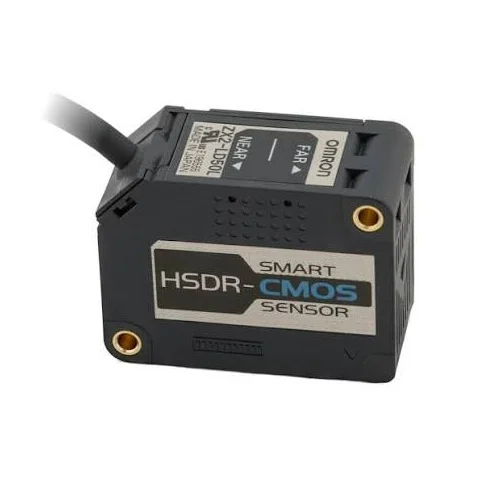

Omron ZX2-LD100L: diffuse-reflective CMOS laser head, 100 mm center, ±35 mm range, line beam.
The Omron ZX2-LD100L is a diffuse-reflective CMOS laser displacement sensor head with a 100 mm measurement center and ±35 mm range. Its line beam provides 5 μm resolution when connected to a compatible ZX2 amplifier. Omron specifies Class 1 laser classification, IP67 protection and a 500 mm standard cable.
ZX2 CMOS laser head with 100 mm center point, ±35 mm range and line beam.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Diffuse-reflective CMOS laser displacement sensor head |
| Measurement center point | 100 mm |
| Measurement range | ±35 mm |
| Beam shape | Line |
| Resolution | 5 μm |
| Light source | 660 nm visible semiconductor laser, 1 mW max. |
| Laser class | Class 1 |
| Connection | Connector; standard cable length 500 mm |
| Degree of protection | IP67 |
| Operating temperature | 0 to 50°C |
| Storage temperature | -15 to 70°C |
| Ambient humidity | 35 to 85% RH |
| Packed weight | Approx. 160 g (head only approx. 75 g) |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Active; Omron reports selling and standard-stock status, updated 2026-09-11. |
Engineering suggestions require suitability checks for your installation.
Measure part position or height at an automated inspection station.
Pair the sensor head with a compatible ZX2 amplifier and validate target material, alignment and measurement range.
Provide non-contact distance feedback on a moving or stationary product.
Select line or spot beam based on surface conditions and connect the head to the corresponding ZX2 amplifier input.
