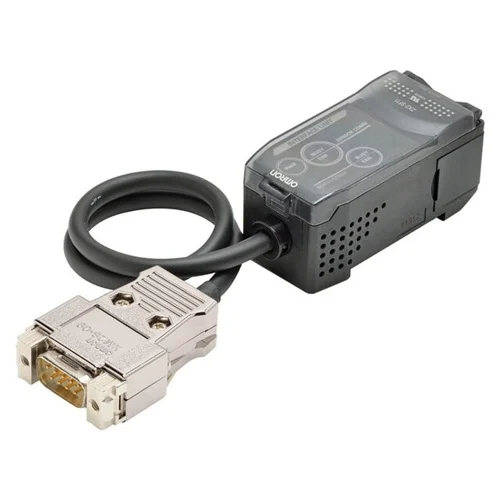

Omron ZX2-SF11 interface unit connects up to five compatible ZX2 amplifiers to an RS-232C host.
The Omron ZX2-SF11 is a communications interface unit for compatible ZX2 laser displacement sensor amplifiers. It provides a full-duplex RS-232C connection through a 9-pin D-sub connector and can link up to five amplifier units. The interface supports ASCII data and selectable 38,400 or 9,600 bps communication; power is supplied through the sensor amplifier.
RS-232C interface for linking compatible ZX2 laser displacement amplifiers to a host system.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Communications interface unit |
| Compatible amplifiers | ZX2-LDA series, specified versions |
| Maximum connected amplifiers | 5 |
| Communication interface | RS-232C, 9-pin D-sub connector |
| Communication method | Full duplex, asynchronous |
| Transmission code | ASCII |
| Baud rate | 38,400 bps (default) or 9,600 bps selectable |
| Data bits | 8 |
| Parity | None |
| Stop bits | 1 |
| Power supply | 10–30 V DC ±10%, supplied from sensor amplifier |
| Power consumption | 720 mW max. |
| Operating temperature | 0 to 50°C |
| Operating humidity | 35 to 85% RH, non-condensing |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | Manufacturer dimensional drawing; overall dimensions not stated as a single L × W × H value. |
| Supply status | Unknown; exact model specifications confirmed, current supply status not established. |
Engineering suggestions require suitability checks for your installation.
Transfer measurement or amplifier data to a host controller over a serial link.
Connect the RS-232C port to a compatible host and configure the matching baud rate and ASCII protocol.
Collect data from several compatible ZX2 amplifier units at a host interface.
Connect up to five supported amplifiers and verify versions, cabling and host communication settings.
