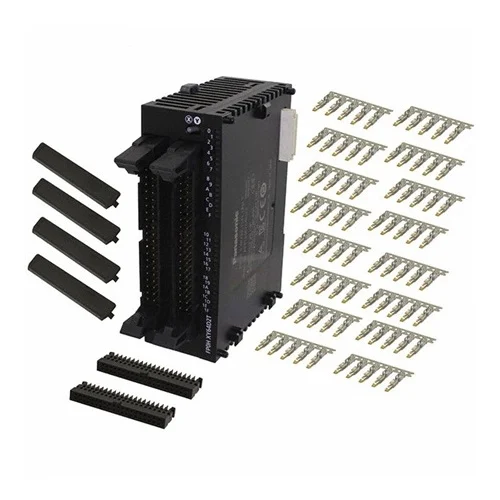

Panasonic AFP0HXY64D2T FP0H 64-Point IO Expansion Unit

Technical Overview

Compact I/O expansion unit with 32 digital DC inputs (NPN/PNP) and 32 NPN transistor outputs at 24VDC, shock/vibration resistant, for FP0H PLCs.

Key Features

64 I/O Points: 32 NPN or PNP Digital Inputs and 32 NPN Transistor Outputs.
Rated Input Voltage: 24 V DC (operating range 21.6 to 26.4 V DC).
Wiring Termination: MIL Connector for reliable high-density connections.
Insulation Method: Photocoupler for electrical isolation.
Resistant Properties: Shock and Vibration Resistant for harsh industrial environments.
Operating Temperature Range: 0 to +55 °C.
Ultra-compact size for space-constrained installations.
Designed for use with Panasonic FP0H Series Programmable Controllers.

Technical Specification Matrix

Parameter	Value
Series	FP0H
Component Type	I/O Expansion Unit
Input Type	32 Digital Inputs (NPN or PNP), DC
Rated Input Voltage	24 V DC
Operating Voltage Range	21.6 to 26.4 V DC
Rated Input Current	3.5 mA approx.
Input Impedance	6.8 kΩ
Output Type	32 NPN Transistor Outputs
Output Current Rating	0.1 A
Wiring Termination	MIL Connector
Insulation Method	Photocoupler
Operating Temperature Range	0 to +55 °C
Ambient Humidity	30 to 85 % RH (At storage: 30 to 85 % RH)
Breakdown Voltage	500 V AC for 1 minute
Insulation Resistance	100 MΩ or more
Vibration Resistance	10 to 55 Hz
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	9 x 6 x 3
