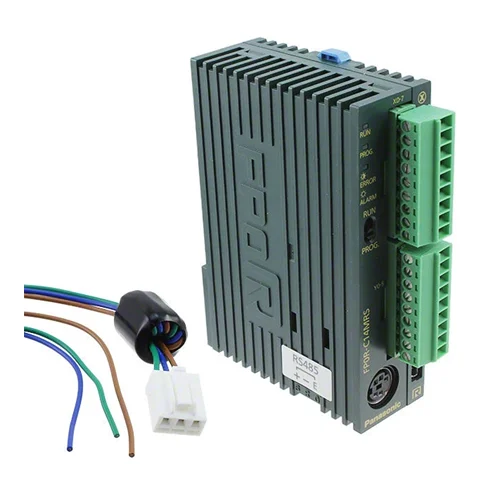

Panasonic AFP0RC14MRS PLC Control Unit

Technical Overview

Ultra-compact PLC with 8 inputs, 6 relay outputs, RS-485 COM port, 16k EEPROM steps, and 0.08 µs execution speed.

Key Features

Ultra-compact design with a narrow 25 mm footprint to maximize control panel space.
Integrated RS-485 serial port supporting Modbus RTU communication up to 115.2 kbps.
Battery-free program and system register backup using non-volatile EEPROM memory.
Ultra-fast processing capability of 0.08 µs per step for basic instructions.
Direct system expansion up to 110 I/O points using compatible FP0/FP0R modules.
Equipped with 8 digital inputs and 6 relay outputs rated at 2A on a screw terminal block.

Technical Specification Matrix

Parameter	Value
Program Capacity	16k steps
Number of Inputs	8 points (24V DC, Sink/Source)
Number of Outputs	6 points (Relay, 2A)
Power Supply Voltage	24V DC (Applied range: 21.6V to 26.4V DC)
Communication Ports	1x RS-485 (COM Port), 1x Mini USB (Tool Port), 1x RS-232C (Tool Port)
RS-485 Baud Rate	19.2 kbps to 115.2 kbps
Execution Speed	0.08 µs/step (basic instructions up to 3,000 steps)
IP Rating	IP20
Mounting Type	35 mm DIN Rail
Operating Temperature Range	0 to +55 °C
Physical Weight (kg)	0.11
Dimensions L x W x H (cm)	6 x 2.5 x 9

Industrial Applications

1. Labeling and Packaging Conveyor Synchronization

Utilizes the high-speed execution rate (0.08 µs/step) and built-in RS-485 Modbus RTU interface to synchronize labeling application speeds across multiple motor shafts. The integrated relay outputs can directly trigger packaging/pneumatic pushers.

Problem Solved

Eliminates the need for bulky external communication cards or premium-tier PLCs, reducing total panel size and component budget in machine designs under 100mm wide.

Modbus RTUServo Motor SynchronizationRelay Output ControlLabeling Machine

2. HVAC Air Handler and Damper Control

Controls ventilation damper actuators using the 6 relay outputs (2A) while communicating with master building management systems (BMS) over the long-distance RS-485 serial bus up to 1200 meters.

Problem Solved

Solves space limitations in wall-mounted electrical cabinets by providing a dense, narrow (25mm) DIN-rail form factor that includes both relays and serial communication ports natively.

Building AutomationHVAC ControlDIN Rail MountingRS-485 Network

3. Automated Liquid Dispensing and Valve Control

Orchestrates multi-valve dispensing steps in automated liquid filling lines. The PLC monitors up to 8 sensor inputs (e.g., proximity limits or float switches) and switches high-current solenoid valves directly via the 2A relay outputs.

Problem Solved

Saves wiring time and eliminates the physical failure points of intermediate terminal relays by switching 2A loads directly from the PLC terminal block.

Solenoid Valve ControlLiquid DispensingInterposing Relay EliminationScrew Terminals
