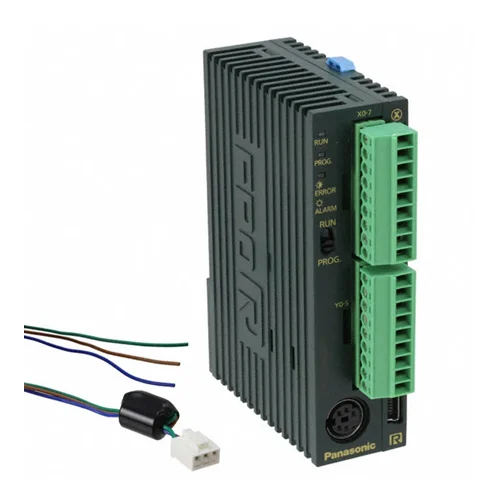

Panasonic AFP0RC14RS Integrated PLC CPU Unit

Technical Overview

Compact 24VDC PLC CPU unit with 8 digital inputs (6 high-speed 50kHz counters) and 6 relay outputs. Features 16K steps program memory, RS-232C, and USB.

Key Features

Integrated 8 digital inputs (24VDC, Sink/Source), including 6 high-speed 50kHz counters.
Equipped with 6 relay outputs (NO contact type, 2A).
Features 16K steps of EEPROM program memory, providing battery-less data backup.
Includes RS-232C and Mini USB communication ports for versatile connectivity.
Compact body dimensions (25mm width, 90mm height) for installation in confined spaces.
Supports DIN rail mounting for easy integration into control panels.
Built-in 4-axis pulse output enables multi-axis motor control without additional expansion units.
Supports multiple programming languages including Ladder Diagram, Structured Text, and Function Block Diagram.

Technical Specification Matrix

Parameter	Value
Supply Voltage	24V DC
Digital Inputs	8 (24VDC; Sink / Source; including 6 x high-speed 50kHz counters)
Digital Outputs	6 (Relay, NO contact type, 2A)
Program Capacity	16K steps (EEPROM)
Data Memory	12315 words / 12Kwords
Communication Ports	RS-232, Mini USB
Connection Type	Screw-clamp terminals
Operation Speed (Basic Instructions)	0.08 μs min (up to 3000 steps); 0.58 μs min (3001st and later steps)
Operating Temperature	0 to 55°C
Number of I/O points (Control unit only)	14 (8 Input, 6 Output)
Max. I/O points with expansion	110 points
Physical Weight (kg)	0.11
Dimensions L x W x H (cm)	6 x 2.5 x 9

Industrial Applications

1. High-Speed Packaging Machine Control

This PLC unit is ideal for controlling high-speed packaging machinery due to its integrated high-speed 50kHz counters and fast processing speed. It can accurately track product movement, synchronize conveying, and manage various discrete actuators.

Problem Solved

Precisely synchronize and control high-speed packaging operations, such as counting, filling, and sealing, where accurate position feedback from encoders and fast output responses for actuators are critical to maintaining throughput and quality.

high-speed countingmotor encoder feedbackdiscrete controlpackaging automationsynchronization24VDC control

2. Compact Material Handling & Conveyor System Automation

The AFP0RC14RS is well-suited for automating small to medium-sized material handling and conveyor systems. Its 8 digital inputs can handle sensor signals for presence detection or limit switches, while the 6 relay outputs can control conveyor motors, diverters, and sorting mechanisms.

Problem Solved

Automating the reliable movement and sorting of items on a conveyor belt system within a limited control panel space, ensuring efficient material flow and flexibility for various handling tasks.

conveyor controlmaterial flowsensor integrationdiscrete I/Omotor controlDIN rail mounting

3. Basic Machine Tool Positioning and Sequence Control

With its built-in 4-axis pulse output, this unit can directly drive stepper or servo motors for basic positioning tasks in machine tools or automated assembly jigs. Its quick processing time allows for effective sequential control of various machining operations.

Problem Solved

Providing cost-effective and precise multi-axis positioning combined with robust sequential control for compact machine tools or automated assembly, eliminating the need for more complex and expensive dedicated motion controllers for simpler applications.

multi-axis positioningpulse outputstepper motor controlservo drive interfacesequential controlautomated assembly
