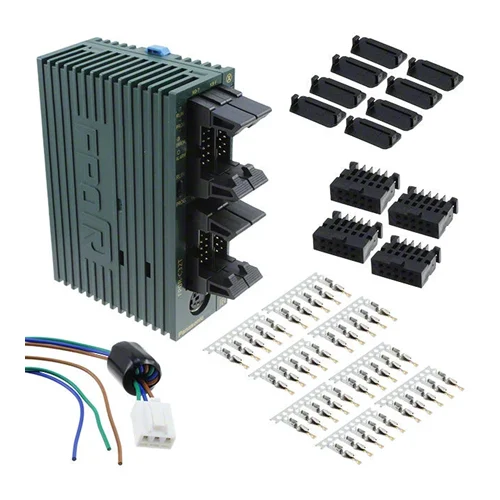

Panasonic AFP0RC32P Programmable Logic Controller

Technical Overview

Compact PLC with 16 digital inputs, 16 PNP transistor outputs, 6 analog RTD/resistance inputs, and high-speed processing (0.08µs/step).

Key Features

32K steps program capacity and 32K words data memory using EEPROM.
16 digital inputs (24VDC, Sink/Source), including 6 high-speed 50kHz counters.
16 digital outputs (24VDC, PNP transistor, 200mA), featuring 4 x 50kHz pulse outputs and 4 x 4.8kHz PWM channels.
Integrated 6-channel analog inputs supporting RTD (Pt100/Pt1000/Ni1000) and resistance with high resolution.
Equipped with RS-232C and USB 2.0 (mini USB) communication ports for flexible connectivity and programming.
Ultra-compact dimensions (W25 x H90 x D60mm) optimize space in control cabinets.
Supports multi-axis control directly without the need for additional expansion units.
Designed for DIN rail mounting for easy installation.

Technical Specification Matrix

Parameter	Value
Input Voltage	24 V DC
Output Voltage	24 V DC
Digital Inputs	16 (24VDC, Sink/Source)
High-Speed Counter Inputs	6 points (50 kHz max. each)
Analog Inputs	6 channels (RTD Pt100/Pt1000/Ni1000/Resistance)
Digital Outputs	16 (PNP Transistor)
Output Current	0.2 A per output
Pulse Outputs	4 points (50 kHz max. each)
PWM Outputs	4 points (6 Hz to 4.8 kHz)
Program Memory Type	EEPROM
Program Capacity	32 K steps
Data Memory Capacity	32765 words / 32 K words
Processing Speed (first 3000 steps)	0.08 μs/step
Processing Speed (3001st and later steps)	0.58 μs/step
Communication Ports	RS-232C, USB 2.0 (mini USB)
Operating Temperature	0 °C to 55 °C
Mounting Type	DIN Rail
Contamination Level	Pollution level 2
Physical Weight (kg)	0.11
Dimensions L x W x H (cm)	6 x 2.5 x 9

Industrial Applications

1. Precision Motor Control for Labeling Machines

Utilizes the PLC's 4-axis 50kHz pulse outputs for highly accurate positioning and speed regulation of stepper or servo motors in demanding labeling applications. High-speed counter inputs synchronize with encoder feedback to ensure precise label dispensing, application, and product indexing.

Problem Solved

Addresses the need for highly accurate and repeatable label placement on products at high production speeds, minimizing errors and improving overall efficiency, particularly for complex labeling patterns.

Pulse outputHigh-speed counterMulti-axis controlPositioningEncoder feedback50kHzLabeling machines

2. Temperature Regulation in Industrial Ovens and Climate Chambers

Leverages the 6 built-in analog inputs, which support RTD (Pt100/Pt1000/Ni1000) and resistance sensors, to accurately monitor and control temperatures. The digital outputs can then precisely activate heating elements, cooling fans, or safety interlocks to maintain stable thermal conditions.

Problem Solved

Ensures consistent and precise temperature environments critical for processes like material curing, heat treatment, or environmental testing, preventing costly material damage or inconsistent product quality due to temperature deviations.

RTD inputAnalog inputTemperature controlDigital outputProcess controlIndustrial ovens

3. Small-Scale Material Handling and Sorting Systems

Its compact form factor, 16 digital inputs, and 16 PNP transistor outputs are ideally suited for controlling conveyor belts, pneumatic cylinders, and solenoid valves in compact material handling or sorting lines. The high-speed inputs enable rapid detection of product presence and position, while fast transistor outputs actuate sorting gates or pick-and-place mechanisms quickly.

Problem Solved

Automates fundamental material flow and sorting tasks within confined industrial spaces, enhancing throughput, reducing manual labor, and increasing the speed of operations in packaging, assembly, or inspection applications.

Digital I/OPNP outputCompact PLCMaterial handlingSortingSensor integrationConveyor control
