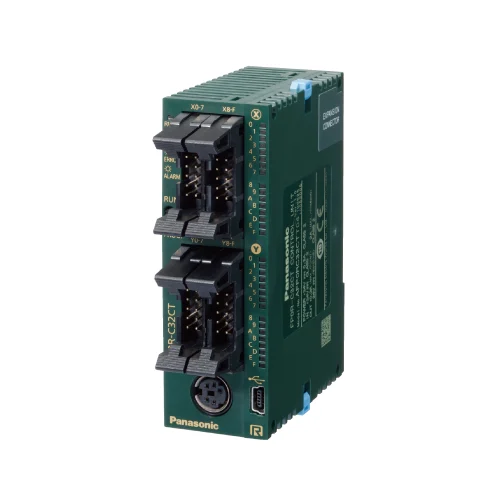

Panasonic AFP0RF32CT FP0R Control Unit PLC

Technical Overview

Compact 24VDC PLC control unit with 16 NPN/PNP digital inputs, 16 NPN transistor outputs, 32k-step EEPROM, RS-232C, and Mini USB.

Key Features

Program memory: 32k steps EEPROM (battery-less data backup).
I/O Points: 16 digital inputs (NPN or PNP) and 16 NPN transistor outputs.
Expandable: Up to 128 I/O points with expansion units.
Communication: Built-in RS-232C port and Mini USB tool port.
High-speed Counter: Single-phase 6 points (50 kHz max. each) or 2-phase 3 points (15 kHz max. each).
Pulse Output: 4 points (50 kHz max. each) for multi-axis control.
PWM Output: 4 channels (6 Hz to 4.8 kHz).
Operation Speed: Ultra-high speed processing with 0.08 μs/step for basic instructions (first 3000 steps).
Mounting Type: DIN Rail.
Output Current: 0.2 A per NPN transistor output.

Technical Specification Matrix

Parameter	Value
Series	FP0R
Component Type	CPU/Control Unit
Supply Voltage	24 VDC
Total I/O Points (Base Unit)	32 (16 In, 16 Out)
Max I/O Points (with expansion)	128
Input Type	16 NPN or PNP Digital
Output Type	16 NPN Transistor
Output Current (per point)	0.2 A
Program Memory Type	EEPROM (Battery-less)
Program Capacity	32k steps
Communication Ports	RS-232C, Mini USB
Wiring Termination	MIL Connector
Mounting Type	DIN Rail
High-speed Counter	6 points single-phase (50 kHz max) or 3 points 2-phase (15 kHz max)
Pulse Output	4 points (50 kHz max each)
PWM Output	4 channels (6 Hz to 4.8 kHz)
Basic Instruction Speed (first 3000 steps)	0.08 μs/step
Physical Weight (kg)	0.2
Dimensions L x W x H (cm)	6 x 2.5 x 9

Industrial Applications

1. High-Speed Packaging Machine Control

The controller can manage various aspects of a packaging machine, such as conveyor belt speed, precise product positioning, and sealing operations. The high-speed counter inputs (50 kHz max) are crucial for accurate detection of product position via encoders, while the pulse outputs (50 kHz max) can drive stepper or servo motors for precise material handling and cutting. The 0.2A transistor outputs can actuate small solenoids or relays for gripping or ejecting.

Problem Solved

Ensures accurate and rapid control of packaging processes, minimizing material waste and maximizing throughput due to fast instruction execution (0.08 μs min) and high-speed I/O capabilities.

High-speed counterpulse outputdigital I/O24VDCNPN transistor outputpackagingmotion control

2. Small Material Handling and Conveyor Systems

This PLC is ideal for controlling small-scale material handling systems, including sorting mechanisms, conveyor lines, and pick-and-place operations. Its 16 digital inputs can monitor limit switches, proximity sensors, or push buttons, while the 16 transistor outputs can directly control small motors, solenoids, or indicator lights. The RS-232C port allows for communication with HMI panels for operational feedback and control.

Problem Solved

Provides reliable and efficient automation for material flow, enabling precise control over product movement and sorting in compact industrial environments.

Digital inputdigital output24VDCRS-232Cconveyormaterial handlingautomationNPN transistor output

3. Process Control for Small Skids/OEM Panels

The AFP0RF32CT can be integrated into small process skids or OEM machine panels for controlling basic sequential processes. The digital I/Os can interface with sensors for level, pressure, or temperature switches, and control pumps, valves, or heaters. The built-in PWM outputs can be used for precise proportional control of certain actuators (e.g., flow control valves or dimmable lights in an industrial setting) where 6Hz to 4.8kHz modulation is sufficient.

Problem Solved

Offers a compact and cost-effective solution for automating localized industrial processes requiring reliable discrete control and basic analog-like control via PWM.

Process controldigital I/OPWM output24VDCOEMsolenoid controlvalve controlcompact PLC
