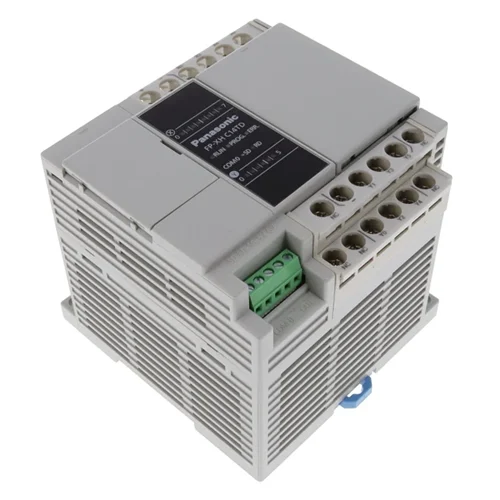

High-speed compact PLC with 16k step capacity, 8-point 24VDC input, 6-point NPN transistor output, 3-axis 100kHz pulse output, and 100-240VAC power supply.
High-speed compact PLC with 16k step capacity, 8-point 24VDC input, 6-point NPN transistor output, 3-axis 100kHz pulse output, and 100-240VAC power supply.
| Parameter | Value |
|---|---|
| Power Supply Voltage | 100 to 240 V AC |
| Input Specifications | 8-point input of 24 V DC |
| Output Specifications | 6-point output of transistor (NPN) |
| Output Rating | 0.5 A / 5 to 24 V DC |
| Program Capacity | 16 k steps |
| Basic Instruction Speed | 0.04 μs/step (ST instruction, up to 7 k steps) |
| High-Speed Counter Input | Single-phase 8 channels (100 kHz x 4, 10 kHz x 4) or 2-phase 4 channels (50 kHz x 2, 10 kHz x 2) |
| Pulse Output | 3 channels, each 100 kHz |
| PWM Output | 3 channels (1 Hz to 70 kHz with resolution of 1000, 70.001 kHz to 100 kHz with resolution of 100) |
| Operating Ambient Temperature | 0 to +55 °C (+32 to +131 °F) |
| Storage Ambient Temperature | -40 to +70 °C (-40 to +158 °F) |
| Operating Ambient Humidity | 10 to 95 % RH (non-condensing) |
| Isolation Resistance | 100 MΩ or more (500 V DC using an insulation resistance meter) |
| Vibration Resistance | 5 to 8.4 Hz, 3.5 mm single amplitude; 8.4 to 150 Hz, Acceleration 9.8 m/s² |
| Shock Resistance | 147 m/s², 4 times each in X, Y, and Z directions |
| Noise Resistance | 1,000 V [P-P] with pulse widths of 50 ns and 1 μs |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 8.2 x 8.6 x 9 |
Utilizing the integrated 3-axis built-in 100 kHz high-speed pulse output function to manage stepper and servo drives for film feed and sealing mechanism alignment.
Eliminates the cost and space required for an external motion controller module by handling multi-axis synchronized moves directly within the compact PLC.
Configuring the 8-channel high-speed counter inputs (up to 100 kHz) to track rotary encoders on a conveyor line and executing fast sorting actions via NPN outputs.
Solves latency and registration issues in rapid-throughput lines, ensuring parts are accurately sorted at high speeds without missing pulse counts.
Driving automated X-Y gantry axes using the high-speed pulse outputs while integrating with HMI and auxiliary devices over standard Modbus-RTU protocols.
Standardizes OEM machinery onto a cost-effective, space-saving AC-powered micro controller that combines reliable local execution with industry-standard communication.
