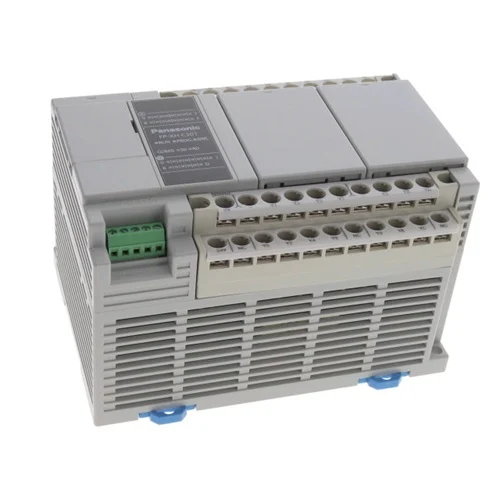

Panasonic AFPXHC30T 8-Axis Motion Control PLC Unit

Technical Overview

High-speed 8-axis motion control PLC with 16DI/14DO NPN transistor outputs, 100-240VAC, 0.04μs/step, and RTEX I/F. Ideal for complex automation.

Key Features

Integrated Programmable Logic Controller (PLC) CPU unit.
Supports 8-axes motion control via RTEX I/F.
16 digital inputs (24V DC).
14 NPN transistor digital outputs (5-24V DC, 500mA).
Wide AC power supply range: 100 to 240V AC.
High-speed basic instruction processing: 0.04 μs/step (up to 7k steps).
Program capacity of 32k steps.
Screw-clamp terminal connections, RJ-45 port, and USB port.
DIN Rail mounting for easy installation.
Expandable up to 300 I/O points (382 with FP0R expansion units and add-on cassettes).
Compatible with Modbus-RTU master/slave.
PLC link function for data sharing with up to 16 FP-XH units.
Built-in 4-axis high-speed pulse output function.

Technical Specification Matrix

Parameter	Value
Part Number	AFPXHC30T
Product Type	FP-XH Control Unit / Integrated PLC CPU Unit
Power Supply	100 to 240V AC
Digital Inputs	16 points, 24 V DC
Digital Outputs	14 points, NPN transistor, 0.5 A / 5 to 24 V DC
Operating Temperature	0 to +55 ℃ (32 to +131 ℉)
Storage Ambient Temperature	-40 to +70 ℃ (-40 to +158 ℉)
Operating Humidity	10 to 95 % RH (at +25 ℃, non-condensing)
Storage Ambient Humidity	10 to 95 % RH (at +25 ℃, non-condensing)
Breakdown Voltage (Power Supply to Earth)	1,500 V AC for 1 minute
Breakdown Voltage (Power Supply to Service Power Supply)	1,500 V AC for 1 minute
Breakdown Voltage (Input Terminal to Earth)	1,500 V AC for 1 minute
Breakdown Voltage (Output Terminal to Earth)	500 V AC for 1 minute
Insulation Resistance	100 MΩ or more (500 V DC)
Program Capacity	32 k steps
Mounting Type	DIN Rail
Output Current (Digital Outputs)	500 mA
Max. I/O Points	300 points (expandable to 382)
Basic Instruction Speed	0.04 μs/step (up to 7k steps)
High-Speed Counter	Single-phase 8 channels (10 kHz × 8) or 2-phase 4 channels (10 kHz × 4)
Pulse Output / PWM Output	4 axes (pulse output 100 kHz, PWM output 1 Hz to 100 kHz)
Physical Weight (kg)	0
Dimensions L x W x H (cm)	10 x 9 x 10.12

Industrial Applications

1. High-Precision Multi-Axis Robotic Systems

This PLC can serve as the central control unit for industrial robots requiring precise, synchronized movement across multiple axes. The integrated RTEX I/F is specifically designed for 8-axes motion control, enabling real-time communication with servo drives. The high-speed instruction processing ensures minimal latency in motion commands, critical for applications like robotic assembly, welding, or pick-and-place operations.

Problem Solved

Solves the challenge of coordinating complex, high-speed multi-axis motion in robotics without needing separate motion controllers, reducing system complexity and integration time.

RTEX I/F8-axes motion controlhigh-speed pulse outputreal-time communicationrobotic controlservo drive integration

2. Automated Packaging Machinery

The FP-XH C30T can control sophisticated packaging lines, where precise material handling, cutting, and sealing operations are common. Its high-speed processing and built-in pulse output for up to 4 axes make it ideal for controlling servo motors on conveyors, indexing tables, and cutting mechanisms. The digital I/O handles sensors for product detection and actuators for various packaging steps.

Problem Solved

Addresses the need for accurate and synchronized control of multiple mechanical components in packaging lines to ensure high throughput and consistent product quality.

Packaging automationconveyor controlindexingmaterial handlingpulse outputdigital I/Ohigh-speed processing

3. Semiconductor Wafer Processing Equipment

In semiconductor manufacturing, machines require extremely precise positioning and rapid execution of commands for wafer handling, etching, and inspection. The FP-XH C30T's 8-axis motion control capability via RTEX and fast basic instruction speed (0.04 μs/step) are perfectly suited for these demanding environments, enabling precise control of robotic arms, stages, and tool heads. The robust breakdown voltage and insulation resistance specs indicate suitability for industrial environments.

Problem Solved

Provides the necessary high-speed, high-precision control for critical processes in semiconductor manufacturing, minimizing errors and maximizing yield.

Semiconductor manufacturingwafer handlingprecision positioningmulti-axis controlhigh-speed operationRTEXindustrial automation
