USD 134.16

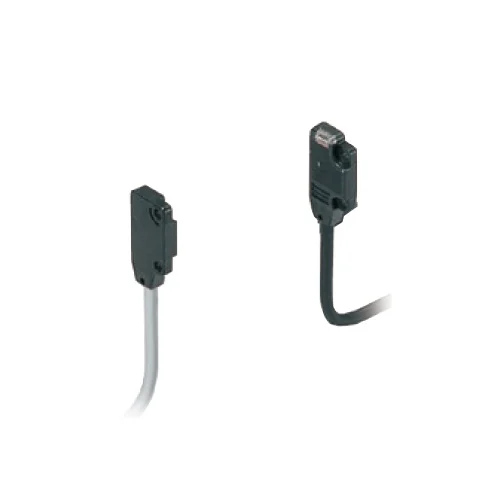

Ultra-slim 3.5mm through-beam sensor with 1m sensing, 0.5ms response, NPN output, and IP67 for precise detection in confined industrial spaces.
Ultra-slim 3.5mm through-beam sensor with 1m sensing, 0.5ms response, NPN output, and IP67 for precise detection in confined industrial spaces.
| Parameter | Value |
|---|---|
| Sensing Method | Through-Beam |
| Sensing Distance | 1 meter |
| Minimum Detectable Object | 2 mm |
| Output Type | NPN Open-Collector |
| Output Current | 50 mA |
| Operating Mode | Light-ON |
| Supply Voltage | 12 to 24 VDC |
| Current Consumption | 10 mA (emitter and receiver total) |
| Response Time | 0.5 ms |
| Light Source | Red LED (650 nm) |
| IP Rating | IP67 |
| Operating Temperature | -25 to +55°C |
| Housing Material | PBT Housing, Polyarylate Lens |
| Connection | 2m Pre-wired Cable |
| Physical Weight (kg) | 0.04 |
| Dimensions L x W x H (cm) | 0.35 x 1 x 2.05 |
This sensor can accurately count small parts, even those as small as 2mm, moving rapidly on a conveyor due to its narrow beam and fast 0.5ms response time.
Prevents miscounts and bottlenecks in high-throughput manufacturing lines by reliably detecting small, fast-moving objects.
Its ultra-slim 3.5mm profile allows for seamless integration into compact robotic grippers or end-effectors to detect the presence or absence of small components without interfering with the robot's movement or requiring excessive space.
Enables precise handling and assembly of miniature parts by providing accurate feedback on object presence in very confined spaces, optimizing robotic operations.
With its 1m sensing range and IP67 rating, this thru-beam sensor can be mounted externally to reliably detect the high or low level of clear or translucent liquids in non-metallic tanks by sensing the presence or absence of the liquid between the emitter and receiver.
Provides reliable, non-contact liquid level monitoring in challenging industrial environments, protected against splashes and dust, ensuring process control and safety.
