USD 184.56

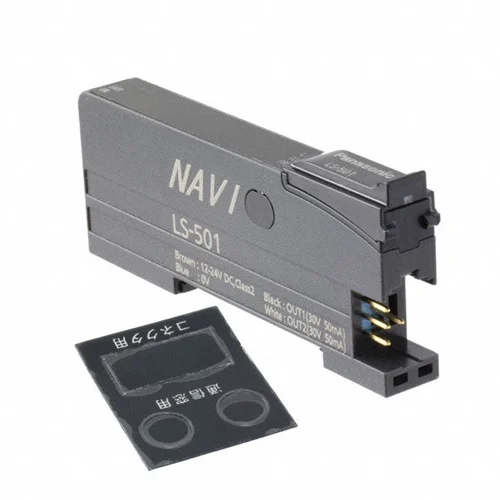

High-speed 25µs response digital fiber sensor amplifier with dual PNP output, 12-24VDC, IP40, and multiple teaching modes for minute object detection.
High-speed 25µs response digital fiber sensor amplifier with dual PNP output, 12-24VDC, IP40, and multiple teaching modes for minute object detection.
| Parameter | Value |
|---|---|
| Supply Voltage | 12 to 24 V DC +10 -15 % Ripple P-P 10 % or less |
| Power Consumption (Normal) | 960 mW or less (40 mA at 24 V DC) |
| Power Consumption (ECO mode) | 680 mW or less (28 mA at 24 V DC) |
| Output Type | PNP open-collector transistor, 2 points |
| Max. Output Current | 50 mA (25 mA max. if 5 or more standard types connected) |
| Applied Voltage (Output) | 30 V DC or less |
| Residual Voltage (Output) | 2 V or less (at max. source current) |
| Response Time (H-SP) | 25 µs or less |
| Response Time (FAST) | 60 µs or less |
| Response Time (STD) | 250 µs or less |
| Response Time (LONG) | 2 ms or less |
| Response Time (U-LG) | 4 ms or less |
| Response Time (HYPR) | 24 ms or less |
| IP Rating | IP40 |
| Operating Temperature Range | -10 to 55 °C |
| Light Source | Red LED |
| Wavelength | 643 nm |
| Body Material | Polycarbonate (Enclosure, Case Cover), Polyacetal (Switch) |
| Standards Met | CE Marking (EMC Directive, RoHS Directive), UKCA Marking, UL/c-UL Listing certification |
| Physical Weight (kg) | 0.02 |
| Dimensions L x W x H (cm) | 7.61 x 3.2 x 1 |
Accurate counting of small, rapidly moving or closely spaced items on manufacturing or packaging lines.
The FX-502P's H-SP response time of 25 µs ensures precise detection of fast-moving objects, preventing miscounts. Its dual PNP outputs can simultaneously manage counting and trigger subsequent actions.
Monitoring the presence or absence of liquid within transparent or semi-transparent tubes in chemical processing, medical, or beverage dispensing systems.
When combined with appropriate liquid detection fiber optic cables, the FX-502P can reliably distinguish between different states (e.g., tube with liquid, tube without liquid, no tube). Its adjustable sensitivity and dual outputs provide flexible signaling for process control.
Ensuring small components are correctly positioned or present before subsequent robotic assembly operations.
The sensor's ability to detect minute objects with a fast response time makes it ideal for rapid and reliable verification of intricate component placements. The PNP output directly integrates with PLCs or robot controllers, and the IP40 rating suits typical indoor factory environments.
