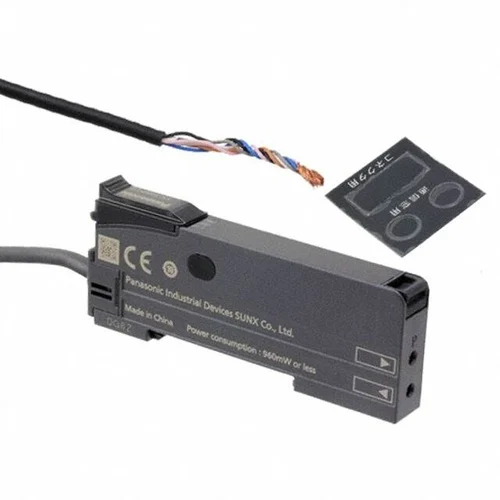

PNP open-collector digital fiber sensor with 2 outputs, 4-20mA analog output, 25µs response, IO-Link V1.1, and -55 to +80°C operating temperature. IP40 rated.
PNP open-collector digital fiber sensor with 2 outputs, 4-20mA analog output, 25µs response, IO-Link V1.1, and -55 to +80°C operating temperature. IP40 rated.
| Parameter | Value |
|---|---|
| Supply Voltage | 12 to 24 V DC ±10% (Ripple P-P 10% or less) |
| Power Consumption (Normal) | 960 mW or less (40 mA at 24 V DC) |
| Power Consumption (ECO mode) | 680 mW or less (28 mA at 24 V DC) |
| Output Type | PNP open-collector transistor, 2 outputs |
| Maximum Source Current (Output) | 50 mA (for 2 outputs) |
| Applied Voltage (Output) | 30 V DC or less (between output and +V) |
| Residual Voltage (Output) | 2 V or less (at maximum source current) |
| Output Operation | Switchable Light-ON / Dark-ON by L/D mode |
| Short-circuit Protection | Incorporated |
| Response Time | H-SP: 25 µs or less (selectable) |
| Analog Output | 4 to 20 mA (Load resistance: 0 to 250 Ω) |
| External Input Type | PNP non-contact input |
| External Input Signal Condition (High) | +4 V to +V DC (at 3 mA sink current) |
| External Input Impedance | 10 kΩ approx. |
| Sensitivity Setting | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| Incident Light Intensity Display Range | H-SP/FAST/STD: 0 to 4,000; LONG: 0 to 8,000; U-LG/HYPR: 0 to 9,999 |
| Timer Range (ms) | 0.5 ms approx., 1 to 9,999 ms approx., 1 ms approx. |
| Timer Range (sec.) | 0.5 s approx., 1 to 32 s approx., 1 s approx. |
| Protection Rating | IP40 (IEC) |
| Operating Ambient Temperature | -10 to +55 °C (+14 to +131 °F) |
| Storage Ambient Temperature | -20 to +70 °C (-4 to +158 °F) |
| Vibration Resistance | 10 to 150 Hz, 0.75 mm double amplitude (10 G max) in X, Y, Z directions for 2 hours |
| Shock Resistance | 98 m/s² acceleration (10 G approx) in X, Y, Z directions five times |
| Emitting Element | Red LED (Peak emission wavelength: 643 nm) |
| Enclosure/Case Cover Material | Polycarbonate |
| Switch Material | Polyacetal |
| Cable | 0.2 mm² 6-core cabtyre cable, 2 m long |
| Cable Extension | Up to 100 m total (with 0.3 mm² or more cable, supply voltage 12 V DC) |
| Length | 75 mm |
| Width | 27.8 mm |
| Height | 62.5 mm |
| Physical Weight (kg) | 0.06 |
| Dimensions L x W x H (cm) | 7.5 x 2.78 x 6.25 |
This digital fiber sensor can precisely detect small, fast-moving components on high-throughput automated assembly lines, ensuring accurate positioning and quality control.
Prevents production bottlenecks and errors by providing rapid, real-time sensing of components, crucial for high-speed manufacturing processes.
The sensor's advanced emission control and wide temperature range enable reliable detection of transparent materials such as glass substrates or plastic films, even in environments with significant temperature fluctuations.
Minimizes false negatives and production downtime by ensuring stable and accurate detection of delicate or challenging transparent objects in varied thermal conditions.
Utilizing its self-diagnosis, threshold tracking, and analog output functions, the sensor continuously monitors incident light intensity, enabling early detection of degradation due to dust accumulation on fiber optics or lenses in challenging environments.
Anticipates sensor degradation or fiber contamination, allowing proactive maintenance before critical failures occur, thereby preventing unexpected line stoppages and improving overall process reliability.
