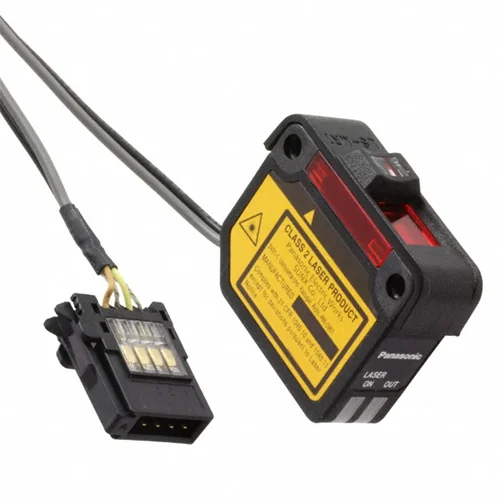

Panasonic LS-H22F Digital Laser Sensor Head

Technical Overview

Compact line reflective laser sensor head for precise, long-range object detection. Features Class 2 red laser, IP40 rating, and flexible sensing modes.

Key Features

Long sensing range with multiple modes: U-LG (30-1000mm), STD (30-500mm), FAST/H-SP (30-300mm).
Line reflective sensing method ideal for varied object detection.
Utilizes a Class 2 red semiconductor laser diode (655nm wavelength) for reliable operation.
IP40 ingress protection rating for industrial environments.
Wide operating temperature range of -10 to 55 °C.
Equipped with orange (operation) and green (laser emission) LED indicators.
FDA, UL/C-UL, CE, Korean S Mark, EMC Directive, RoHS, JIS, GB compliant.
Pre-wired with a 2-meter, 2-core parallel-shielded cable.
Durable construction with PBT enclosure and acrylic lens cover.
Adjustable spot-shape for optimized detection at various distances.

Technical Specification Matrix

Parameter	Value
Sensing Method	Reflective, Diffuse (Line Type)
Sensing Range (U-LG mode)	30 to 1000 mm
Sensing Range (STD mode)	30 to 500 mm
Sensing Range (FAST/H-SP mode)	30 to 300 mm
Light Source	Red Laser Diode (655nm wavelength), Class 2 (FDA / IEC / EN / JIS)
IP Rating	IP40
Operating Temperature Range	-10 to +55 °C
Relative Humidity	35 to 85 % RH
Connection Method	Cable (2m pre-wired)
Enclosure Material	PBT
Lens Cover Material	Acrylic
Standards Met	UL/C-UL, CE, Korean S Mark, FDA, EMC Directive, RoHS, JIS, GB
Physical Weight (kg)	0.03
Dimensions L x W x H (cm)	3.35 x 2.85 x 1.12

Industrial Applications

1. High-Precision Edge Detection in Material Handling

Utilizing its long sensing range and line reflective beam, the LS-H22F accurately detects edges on various materials such as sheets or fabric rolls, even with slight positional variations or at distances up to 1 meter. Its compact dimensions allow for seamless integration onto conveyors or robotic arms.

Problem Solved

Provides accurate identification of material edge positions for automated cutting, alignment, or robotic grasping, mitigating issues caused by irregular surfaces or minor material shifts.

Edge detectionMaterial handlingLine scanPrecise positioningRobotic guidanceAutomated cutting

2. Presence/Absence Verification of Small Components on Assembly Lines

The sensor's adjustable sensing range (30-500mm) and red laser line beam enable reliable detection of small or irregularly shaped components during assembly processes. The IP40 rating ensures suitability for controlled indoor manufacturing environments.

Problem Solved

Ensures all critical components are present before proceeding to the next assembly stage, effectively preventing defects and enhancing quality control for parts that may be challenging for single-point sensors to detect consistently.

Component verificationAssembly automationQuality controlPresence sensingObject detectionProcess automation

3. Web Guiding and Tension Control in Converting Industries

With its extensive sensing range (up to 1000mm) and line reflective capabilities, the LS-H22F is well-suited for monitoring the position and width of continuous webs (e.g., paper, film, textiles) in converting machinery. The line beam can span a segment of the web, making it robust against minor surface imperfections.

Problem Solved

Maintains consistent web alignment and tension, which is crucial for high-efficiency printing, coating, or slitting operations, thereby minimizing material waste and improving overall product quality.

Web guidingTension controlContinuous processingMaterial width measurementRoll-to-roll manufacturingConverting machinery
