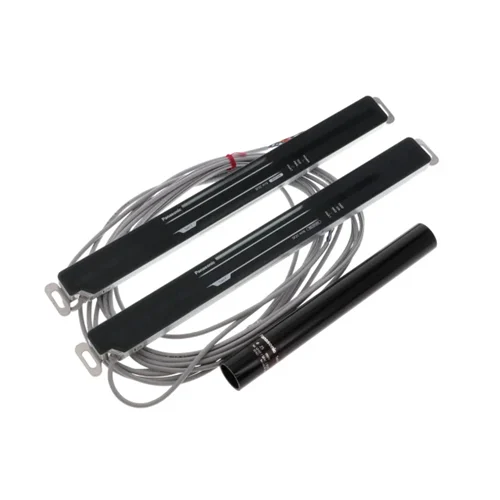

Panasonic SF2C-H16-N Ultra-Slim Safety Light Curtain

Technical Overview

Ultra-slim Type 2 safety light curtain for hand protection. 20mm beam pitch, 320mm protective height, IP65/67, 24VDC NPN, PLc/SIL1.

Key Features

Type 2-Ultra-Slim light curtain design
Hand protection type with 20mm beam pitch
25mm minimum detectable object (MDO)
320mm protective height
Operating range of 0.1 to 3 meters
NPN safety rated control output (NPN open-collector / 24Vdc / 60-200mA)
Fast response time: OFF response ≤ 20 ms, ON response 80 to 100 ms
Input voltage: 24VDC ±20% with Ripple P-P 10% or less
Operating ambient temperature: –10 to +55 °C (no dew condensation or icing)
Storage ambient temperature: -25 to +60 °C
Protection rating: IP65 (IP67 IEC)
Construction materials: Polycarbonate alloy enclosure and sensing surface, stainless steel mounting bracket
Integral 3-meter, 5-core heat-resistant PVC cable
Features an interference prevention function
Suitable for secondary battery manufacturing or food production equipment
Lightweight design, approximately 45% lighter than conventional aluminum case types

Technical Specification Matrix

Parameter	Value
Series	SF2C
Light Curtain Type & Style	Type 2-Ultra-Slim
Protection Type	Hand
Number of Beams	16 beam channels
Beam Pitch	20 mm
Minimum Detectable Object	Ø 25 mm
Protection Height	320 mm
Operation Range	0.1 to 3 meters
Depth	13.2 mm
Light Source	Infrared LED (Peak emission wavelength: 850 nm)
Effective Aperture	±5° or less
Safety Rated Control Outputs	NPN x 1 (NPN open-collector / 24Vdc / 60-200mA)
Safety Control Output Response Time	OFF response: 20 ms or less, ON response: 80 to 100 ms
Supply Voltage	24VDC ±20% Ripple P-P 10% or less
Ambient Operating Temperature	–10 to +55 °C
Ambient Storage Temperature	-25 to +60 °C
Ambient Humidity	30 to 85 % RH
Protection Rating	IP65 (IP67 IEC)
Enclosure Material	Polycarbonate alloy
Sensing Surface Material	Polycarbonate alloy
Mounting Bracket Material	Stainless steel (SUS)
Cable	0.16 mm² 5-core heat-resistant PVC cable, 3 m long
Physical Weight (kg)	0.4
Dimensions L x W x H (cm)	0 x 1.32 x 32

Industrial Applications

1. Machine Safeguarding for Small Press or Assembly Machines

The Panasonic SF2C-H16-N light curtain provides reliable hand protection for operators interacting with compact machinery such as pneumatic presses, automated assembly stations, or gluing machines. Its ultra-slim design allows for installation in tight spaces, and the NPN output is compatible with standard industrial control systems.

Problem Solved

Prevents operator injury by immediately stopping machine operation upon detection of a hand entering the hazardous area, complying with PLc/SIL1 safety standards.

Machine guardingHand protectionPneumatic pressAssembly automationNPN outputIP65/IP67PLcSIL1Compact machinery

2. Access Control for Robotic Workcells in Limited Spaces

This light curtain is an excellent solution for defining and monitoring safe access zones around robotic workcells, especially where physical space is restricted. Its 13.2mm depth and 320mm protective height allow for minimal footprint integration, while the 20mm beam pitch ensures effective detection of personnel entering the safeguarded area.

Problem Solved

Ensures operator safety by detecting unauthorized entry into a robotic workcell, particularly in constrained layouts, and initiating a safe stop of the robot.

Robotic safetyWorkcell access controlUltra-slim sensorNPN interface320mm protective heightSafety interlockPLcSpace-saving

3. Point-of-Operation Guarding in Battery and Food Processing

The SF2C-H16-N is well-suited for point-of-operation guarding in sensitive manufacturing environments, such as secondary battery production or food processing. Its IP65/IP67 rating ensures durability against washdowns and specific environmental conditions, and its polycarbonate alloy enclosure and stainless steel bracket comply with material requirements in these industries.

Problem Solved

Provides reliable point-of-operation safeguarding, ensuring both operator safety and compatibility with stringent material and cleanliness standards in industries like battery manufacturing and food processing.

Point-of-operation guardingBattery manufacturingFood processing equipmentIP67 washdownHand detectionStainless steelPolycarbonateCleanroom compatible
