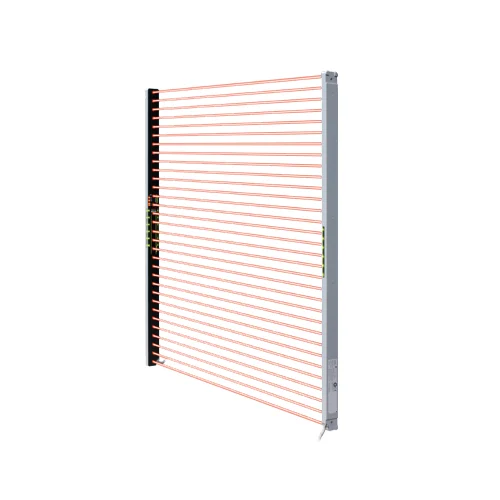

Panasonic SF2C-H20-P Ultra-slim Safety Light Curtain

Technical Overview

Ultra-slim Type 2 safety light curtain, 20mm beam pitch, 400mm protective height, IP67 rated, 24V DC, with 20ms response time for hand protection.

Key Features

Ultra-slim profile (13.2 mm deep) for space-saving integration.
Hand protection type with 20mm beam pitch and 400mm protective height.
Minimum detectable object diameter of ø25 mm.
High ingress protection ratings of IP65 and IP67, suitable for harsh industrial conditions.
Fast OFF response time of 20 ms or less, allowing for reduced safety distances.
Operates on a standard 24 V DC supply voltage.
Features large, bright built-in multi-purpose LED indicators for operational status.
Lightweight resin body (approx. 460g total for emitter and receiver) reduces mounting surface stress.
Easy beam axis alignment with an effective aperture angle of ±5° or less.
Constructed with materials suitable for secondary battery manufacturing and food production equipment.
Equipped with PNP output type.
Conforms to IEC 61496-1/2 (Type 2), ISO 13849-1: 2015 (Category 2, PLc), and IEC 61508-1 to 3 (SIL 1) safety standards.

Technical Specification Matrix

Parameter	Value
Series	SF2C
Type	Type 2 Safety Light Curtain, Hand Protection
Number of Beam Channels	20
Beam Pitch	20 mm
Protective Height	400 mm
Minimum Detectable Object	ø25 mm
Operating Range	0.1 to 3 m
Supply Voltage	24 V DC ±20%
Current Consumption (Emitter, indicator off)	35 mA or less
Current Consumption (Receiver, indicator off)	35 mA or less
Output Type	PNP
Response Time (OFF)	20 ms or less
Response Time (ON)	80 to 100 ms
IP Rating	IP65, IP67
Operating Temperature Range	-10 to 55 °C
Relative Humidity	30 to 85 %
Terminal Type	Cable
Connecting Method	Connector
Integral Cable Length	3 m
Enclosure Material	Polycarbonate alloy
Sensing Surface Material	Polycarbonate alloy
Standards Met	CE, TUV, IEC 61496-1/2 (Type 2), ISO 13849-1: 2015 (Category 2, PLc), IEC 61508-1 to 3 (SIL 1), OSHA/ANSI
Physical Weight (kg)	0.46
Dimensions L x W x H (cm)	42.4 x 3 x 1.32

Industrial Applications

1. Hand Protection in Compact Robotic Assembly Cells

The Panasonic SF2C-H20-P safety light curtain is ideally suited for integration into compact robotic work cells where human operators require safe access for tasks like small part assembly or quality inspection. Its ultra-slim (13.2mm deep) design allows for minimal encroachment on valuable workspace, while the 400mm protective height and 20mm beam pitch ensure comprehensive hand detection.

Problem Solved

This solution prevents accidental injury to operators by rapidly stopping robotic movement when a hand or arm breaches the safety zone, even in confined spaces, ensuring compliance with Type 2 PLc safety standards due to its 20ms response time.

Robotic safetycompact automationhand detectionType 2 safetysmall part assemblyconfined space20ms response time

2. Personnel Safety in Food & Beverage Packaging with Washdown

This light curtain is an excellent choice for safeguarding personnel operating packaging machinery within the food and beverage industry, particularly at loading or unloading points that necessitate frequent washdowns. The robust IP67 rating ensures superior resistance to water jets and dust, while its 24V DC operation makes it seamlessly compatible with prevalent industrial control systems.

Problem Solved

It effectively protects workers from hazardous moving parts during operation and maintenance in wet or dusty environments, significantly minimizing downtime attributed to environmental damage to the safety equipment.

Food processingbeverage packagingwashdown environmentIP67machine guardingpersonnel safety24V DC

3. Point-of-Operation Guarding for Small Press Brakes and Material Feeders

The SF2C-H20-P can be effectively deployed for point-of-operation guarding on small press brakes, stamping machines, or material feeding systems where controlling hand access to hazardous areas is critical. Its rapid 20ms response time facilitates the calculation of a smaller safety distance, thereby maximizing productivity, and the ø25mm minimum detectable object ensures even finger detection.

Problem Solved

This system guarantees operator safety by preventing access to hazardous moving parts (e.g., cutting or pressing areas) during machine cycles, initiating a rapid machine shutdown upon any intrusion, all while maintaining a compact machine footprint.

Press brake safetystampingmaterial feedingpoint-of-operation guarding20ms response timeø25mm object detectionindustrial safety
