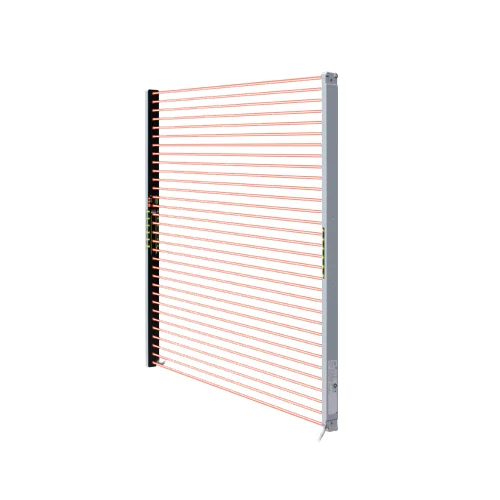

Panasonic SF2C-H24-P Ultra-Slim Type 2 Safety Light Curtain

Technical Overview

Ultra-slim Type 2 safety light curtain with 480mm protective height, 20mm beam pitch for hand protection, and IP67 rating. Operates on 24VDC PNP.

Key Features

Ultra-slim design with a thickness of only 13.2mm.
Designed for hand protection with a 20mm beam pitch and 25mm minimum detectable object.
Protective height of 480mm with 24 beam channels.
Wide operating range from 0.1 to 3 meters.
Operates on 24 VDC PNP power supply.
Complies with safety standards IEC 61496-1/2 (Type 2), ISO 13849-1 (Category 2, PLc), and IEC 61508 (SIL 1).
Lightweight polycarbonate alloy enclosure, approximately 45% lighter than traditional models.
Features large bright built-in multi-purpose LED indicators.
IP67 protection rating for harsh industrial environments.
Easy installation with an integral 3-meter connection cable.
Suitable for manufacturing secondary batteries or for food production equipment due to resin body and stainless steel mounting brackets.

Technical Specification Matrix

Parameter	Value
Product Type	Ultra-slim Safety Light Curtain
Safety Type	Type 2 PLc SIL1 (IEC 61496-1/2, ISO 13849-1:2015 Cat.2 PLc, IEC 61508-1 to 3 SIL 1)
Protection Type	Hand protection
Protective Height	480 mm
Beam Pitch	20 mm
Number of Beam Channels	24
Minimum Detectable Object	Ø25 mm
Operating Range	0.1 to 3 m
Supply Voltage	24 VDC ±20%
Current Consumption (Emitter, indicator off)	35 mA or less
Current Consumption (Receiver, indicator off)	35 mA or less
Current Consumption (Emitter, indicator on)	45 mA or less
Current Consumption (Receiver, indicator on)	40 mA or less
Output Type	PNP
OFF Response Time	20 ms or less
ON Response Time	80 to 100 ms
IP Rating	IP67 (IEC)
Operating Temperature Range	-10 to +55 °C
Relative Humidity	30 to 85 %
Enclosure Material	Polycarbonate alloy (Resin)
Sensing Surface Material	Polycarbonate alloy
Mounting Bracket Material	Stainless Steel (SUS)
Connection Type	Integral Cable (3 meter)
Physical Weight (kg)	0.52
Dimensions L x W x H (cm)	50.4 x 3 x 1.32

Industrial Applications

1. Hand Protection for CNC Machine Tool Loading

This light curtain can be installed at the loading/unloading point of a CNC machining center or stamping press. Its 480mm protective height and hand protection capability (25mm detectable object) ensure that an operator's hand or arm is detected immediately upon entering the hazardous zone, stopping the machine and preventing injury during material handling. Its ultra-slim profile (13.2mm) allows for installation in tight spaces common around machine tools without impeding workflow.

Problem Solved

Prevents operator injury (hand/arm) during manual loading or unloading of parts in high-speed or dangerous machinery operations, meeting PLc SIL1 safety requirements.

CNC machineStamping pressMachine safetyHand protection480mm protective height25mm detectable objectPLc SIL124VDC PNPUltra-slim

2. Restricted Access Protection on Automated Packaging Lines

Employed at access points to automated packaging lines, such as conveyor feed-in areas or palletizing stations, the SF2C-H24-P ensures personnel safety. The 0.1 to 3-meter operating range and IP67 rating make it suitable for environments where occasional splashes or dust are present, common in food or beverage packaging. The 480mm protective height covers typical hand access points, and the Type 2 PLc SIL1 certification provides adequate safety for less complex or slower-moving packaging machinery.

Problem Solved

Safeguards personnel from entanglement or crushing hazards on automated packaging lines, especially in damp or dusty conditions, ensuring operation within safety standards.

Automated packagingConveyor safetyIP67Hand protectionPLc SIL1480mm protective height24VDC

3. Small Robot Cell Entrance Safety

For smaller robotic cells performing assembly or pick-and-place tasks with less kinetic energy (e.g., collaborative robots in non-collaborative mode or light-duty industrial robots), this safety light curtain can monitor the entrance. The 20mm beam pitch for hand detection is crucial for human interaction areas. Its robust -10 to +55 °C operating temperature allows deployment in various factory environments. The ultra-slim design is beneficial when space is at a premium around a compact robot workstation.

Problem Solved

Provides reliable, space-efficient entry monitoring for small to medium robot cells, detecting human presence and preventing accidental interaction with moving robot parts, adhering to PLc SIL1 safety.

Robotic cellAssembly automationPick-and-placeHuman-robot interactionHand detection-10 to +55 °CUltra-slimPLc SIL1
