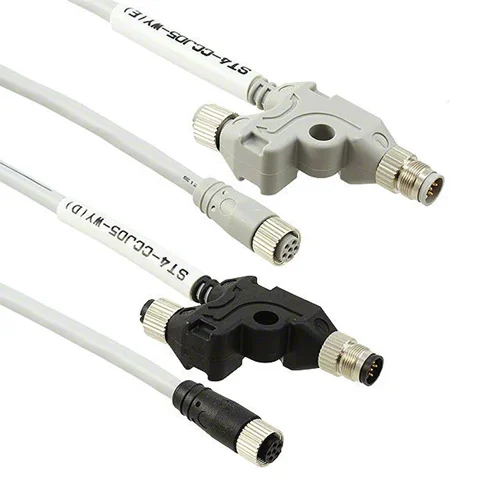

Panasonic ST4-CCJ05-WY Branch Connection Cable 0.5m

Technical Overview

5-conductor shielded branch connection cable, 0.5m length, for Panasonic ST4 Series safety beam sensors, enabling series wiring. Min. bending radius 5mm.

Key Features

Designed for Panasonic ST4 series safety beam sensors.
5-conductor shielded cable for reliable signal integrity.
0.5m (500mm) cable length.
Facilitates series connection of emitter and receiver units.
Connector type for easy and error-free wiring.
Minimum bending radius of R5 mm for flexible routing.
Includes two cables per set (for emitter and receiver).

Technical Specification Matrix

Parameter	Value
Accessory Type	Branch Connection Cable
For Use With/Related Products	ST4 Series Safety Beam Sensors (ST4-A□)
Number of Conductors	5
Shielding	Shielded
Cable Length	0.5 m
Minimum Bending Radius	R5 mm
Cable Color (Emitter)	Gray
Connector Color (Emitter)	Gray
Cable Color (Receiver)	Gray with black line
Connector Color (Receiver)	Black
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	50 x 0 x 0
