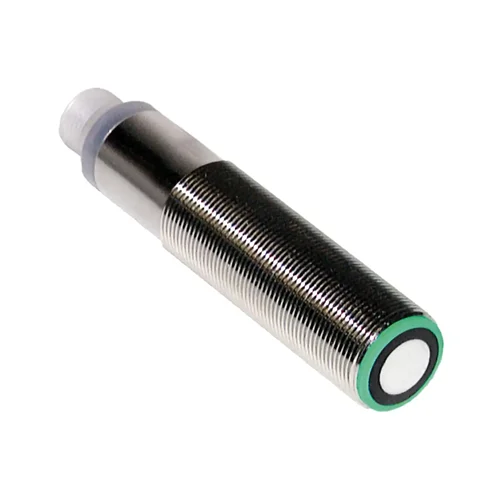

Pepperl+Fuchs UB500-18GM75-E6-V15 Ultrasonic Sensor

Technical Overview

Cylindrical M18 ultrasonic sensor with 30-500mm sensing range, 2 programmable PNP outputs, IP67 housing, and temperature compensation.

Key Features

2 switch outputs
3 different output functions can be set (NO/NC, programmable)
Selectable sound lobe width
Program input
Temperature compensation
Very small unusable area
Nickel-plated brass housing
Cylindrical threaded shape M18
IP67 degree of protection
cULus Listed, Class 2 Power Source, CE, CCC approvals

Technical Specification Matrix

Parameter	Value
Sensing range	30 ... 500 mm
Adjustment range	50 ... 500 mm
Dead band	0 ... 30 mm
Operating voltage (UB)	10 ... 30 V DC, ripple 10 %SS
No-load supply current (I0)	≤ 50 mA
Output type	2 switch outputs PNP, NO/NC, programmable
Rated operating current (Ie)	200 mA
Voltage drop (Ud)	≤ 2.5 V
Repeat accuracy	≤ 0.5 % of switching point
Switching frequency (f)	≤ 8 Hz
Range hysteresis (H)	1 % of the set operating distance
Transducer frequency	approx. 380 kHz
Response delay	approx. 50 ms
Ambient temperature	-25 ... 70 °C (-13 ... 158 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Connection type	Connector plug M12 x 1, 5-pin
Degree of protection	IP67
Housing material	Brass, nickel-plated
Transducer material	Epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT
Standard conformity	EN IEC 60947-5-2:2020, IEC 60947-5-2:2019
UL approval	cULus Listed, Class 2 Power Source
CCC approval	Yes
Physical Weight (kg)	0.06
Dimensions L x W x H (cm)	7.5 x 1.8 x 1.8

Industrial Applications

1. Automated Conveyor System Object Detection

This sensor can precisely detect the presence and position of various objects on a conveyor belt, even irregularly shaped ones, due to its ultrasonic sensing principle and adjustable sensing range of 30-500 mm. The two programmable PNP outputs allow for flexible control, such as triggering an action upon object detection and signaling a 'no object' condition. The IP67 rating ensures reliable operation in dusty or washdown conveyor environments.

Problem Solved

Prevents product collisions, ensures accurate counting, and controls conveyor stops/starts, even in wet or dirty conditions, by reliably detecting objects within a specific range.

Object detectionconveyor automationmaterial handlingPNP outputIP6730-500mm sensing range

2. Liquid Level Monitoring in Non-Contact Tanks

The UB500-18GM75-E6-V15 is suitable for non-contact liquid level sensing in tanks up to 500mm deep, particularly where traditional contact sensors might corrode or contaminate the liquid. The very small unusable area allows for accurate measurement close to the sensor. Its IP67 rating protects against splashes and condensation, and temperature compensation ensures accuracy despite temperature fluctuations in the tank environment.

Problem Solved

Monitors fluid levels without physical contact, preventing contamination and wear from corrosive liquids, and providing accurate readings in environments with varying temperatures.

Liquid level sensingnon-contacttank monitoringIP67temperature compensation30-500mm range

3. Door/Gate Obstacle Detection for Industrial Access

With its robust nickel-plated brass housing, IP67 rating, and a sensing range of up to 500mm, this ultrasonic sensor can reliably detect obstacles in the path of automated industrial doors or gates. The two programmable outputs can be configured to stop the door/gate if an object is detected and provide a 'clear' signal for operation. The selectable sound lobe width can be adjusted to prevent false triggers from adjacent structures.

Problem Solved

Enhances safety by preventing automated doors or gates from closing on personnel or equipment, reducing damage and accidents, especially in demanding industrial settings with potential for water or dust.

Obstacle detectionindustrial doorsgate safetyIP67M18programmable outputs
