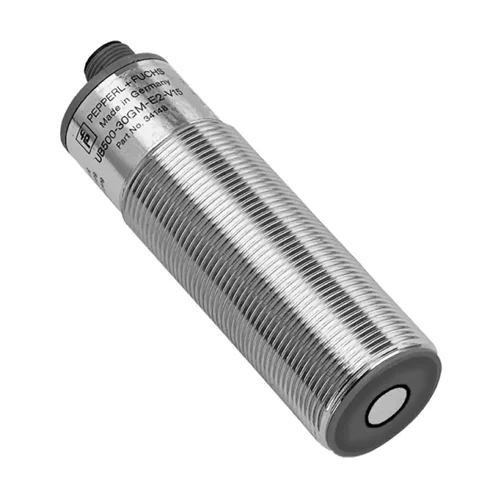

Pepperl+Fuchs UB500-30GM-E5-V15 Ultrasonic Proximity Sensor

Technical Overview

Cylindrical M30 ultrasonic proximity sensor with 30-500mm range, 10-30VDC, PNP NO/NC output, IP65, and temperature compensation.

Key Features

Switching output (PNP, Normally Open/Normally Closed programmable)
5 different output functions can be set
Program input / Teach-In input for easy configuration
Synchronization options for multi-sensor applications
Deactivation option for flexible control
Temperature compensation for stable measurements
Insensitive to compressed air
IP65 protection degree against dust and water jets
Cylindrical M30 housing made of nickel-plated brass

Technical Specification Matrix

Parameter	Value
Sensing Range	30 ... 500 mm
Adjustment Range	50 ... 500 mm
Dead Band / Unusable Area	0 ... 30 mm
Operating Voltage	10 ... 30 V DC, ripple 10 %SS
No-load Supply Current (I0)	≤ 50 mA
Rated Operational Current (Ie)	200 mA
Switching Frequency (f)	≤ 10 Hz
Response Delay	approx. 50 ms
Transducer Frequency	approx. 380 kHz
Output Type	1 switch output PNP, Normally open/closed (NO/NC), programmable
Connection Type	Connector plug M12 x 1, 5-pin (V15)
Degree of Protection (IP Rating)	IP65
Ambient Temperature (Operating)	-25 ... 70 °C
Storage Temperature	-40 ... 85 °C
Housing Material	Nickel-plated brass, plastic components PBT
Transducer Material	Epoxy resin/hollow glass sphere mixture; polyurethane foam
Body Style	Cylindrical M30 threaded barrel
Physical Weight (kg)	0.14
Dimensions L x W x H (cm)	9.4 x 3 x 3

Industrial Applications

1. Non-contact Liquid Level Monitoring in Tanks

The UB500-30GM-E5-V15 precisely monitors liquid levels in small to medium-sized tanks, preventing overfilling or running dry. Its 30-500mm sensing range accommodates various tank sizes, and the IP65 rating ensures durability in wet environments. The programmable PNP output can reliably trigger pumps or alarms based on set liquid levels, enhancing process automation.

Problem Solved

Accurately and reliably monitors liquid levels without physical contact, avoiding contamination or damage from corrosive liquids, and automating fill/drain processes in industrial settings.

Liquid level monitoringNon-contact sensingTank level controlIP65PNP outputProgrammable switch points

2. Object Detection and Positioning on Conveyor Belts

This sensor can reliably detect the presence and precise position of objects, regardless of their color, transparency, or material composition, on a conveyor belt system. Its 30-500mm range allows flexible mounting above the belt, and the 10 Hz switching frequency ensures consistent detection of objects moving at moderate speeds, facilitating automated sorting or handling.

Problem Solved

Provides reliable detection of diverse objects, overcoming limitations of optical sensors with transparent or highly reflective materials, ensuring proper material flow and robotic handling on production lines.

Object detectionConveyor belt automationMaterial handlingPositioningUltrasonic sensing10 Hz switching frequency

3. Roll Diameter Control in Winding/Unwinding Applications

In industries such as paper, film, or textile manufacturing, the UB500-30GM-E5-V15 continuously measures the diameter of a roll during winding or unwinding processes. Its 30-500mm sensing range and temperature compensation provide stable and accurate feedback to control systems, allowing for precise adjustments in tension or speed to maintain consistent product quality.

Problem Solved

Ensures consistent product quality and efficient operation by precisely measuring and controlling the diameter of rolls during manufacturing, preventing material waste and optimizing process parameters.

Roll diameter controlWinding/unwindingTension controlContinuous measurementManufacturing automationTemperature compensation
