Pepperl+Fuchs V1SD-G-GN10M-PUR-E1S-V45-G Ethernet Cable

USD 102.48

Pepperl+Fuchs V1SD-G-GN10M-PUR-E1S-V45-G, 10 m shielded Cat5e Ethernet cable with D-coded M12-to-RJ45 ends, PUR jacket and drag-chain rating.

SKU PEPPERL-FUCHS-V1SD-G-GN10M-PUR-E1S-V45-G Category PEPPERL+FUCHS Data Connectors

Top Brands > PEPPERL+FUCHS > PEPPERL+FUCHS Connectivity

Pepperl+Fuchs V1SD-G-GN10M-PUR-E1S-V45-G Ethernet Connection Cable

BrandPepperl+Fuchs

Model IdentifierV1SD-G-GN10M-PUR-E1S-V45-G

Official Part NumberV1SD-G-GN10M-PUR-E1S-V45-G

Technical Overview

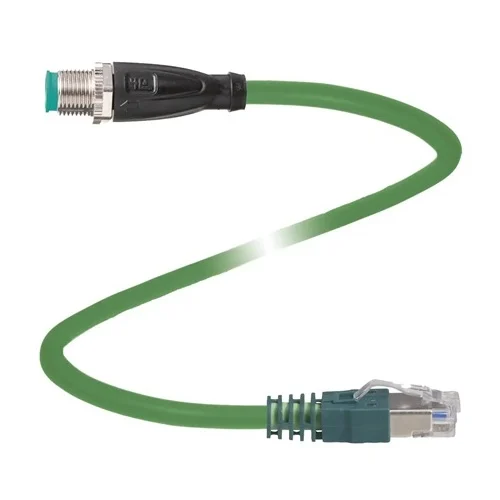

The Pepperl+Fuchs V1SD-G-GN10M-PUR-E1S-V45-G is a 10 m shielded industrial Ethernet cable with a straight 4-pin D-coded M12 plug at one end and a straight 8-pin RJ45 plug at the other. Its green PUR-jacketed CAT5e cable is specified for EtherNet/IP and PROFINET, including up to one million drag-chain cycles at a maximum speed of 3 m/s under the stated test conditions. The M12 connection end is rated IP66/IP68/IP69, while the RJ45 end is IP20; Pepperl+Fuchs continues to list the cable and its current datasheet, with delivery timing by contact.

10 m shielded CAT5e industrial Ethernet cable with D-coded M12-to-RJ45 connectors and drag-chain suitability.

Key Features

Industrial Ethernet connection cable; no image sensor or sensing silicon
10 m cable length with 6 mm sheath diameter; no pixel resolution
No shutter mechanism; this is a passive connection cable
CAT5/CAT5e cable for EtherNet/IP and PROFINET; twisted quad with shield
No onboard processor, AI, or signal-processing circuitry
Straight 4-pin D-coded M12 plug to straight 8-pin RJ45 plug
Cable cross-section 4 x 0.34 mm²; maximum listed operating voltage 48 V AC / 60 V DC and current 1 A
No image buffer or memory; up to 1,000,000 drag-chain cycles at max. 3 m/s, 5 m traverse and 2 m/s² acceleration
Manufacturer product page and datasheet remain current; contact Pepperl+Fuchs for delivery estimate

Technical Specification Matrix

Parameter	Value
Sensor	Not a sensor; shielded industrial Ethernet connection cable
Shutter	Not applicable; passive cable
Resolution	Not applicable; CAT5/CAT5e Ethernet cable
Pixel size	Not applicable
Optical sensor class	Not applicable
Optical sensor size	Not applicable
Frame rate	Not applicable; Ethernet cable component category CAT5/CAT5e
Exposure time	Not applicable
Power consumption	Passive cable; no power consumption specified
Power supply	No supply required; rated up to 48 V AC / 60 V DC, max. operating current 1 A
Image memory	Not applicable; no image memory
Operating temperature	M12 connector: -40 to 90 °C; cable fixed: -30 to 70 °C; cable flexing: -20 to 70 °C
Storage temperature	Not specified separately by the manufacturer
Relative humidity	Not specified separately by the manufacturer
Interface	Ethernet CAT5/CAT5e; EtherNet/IP / PROFINET coding; shielded twisted quad
I/O connector	M12 x 1 D-coded straight 4-pin plug to straight 8-pin RJ45 plug; M12 IEC 61076-2-101, RJ45 IEC 60603-7
Lens mount	Not applicable; M12-to-RJ45 cable
IP rating	M12 end IP66 / IP68 / IP69; RJ45 end IP20
Housing material	M12 screw connection zinc die-cast, nickel-plated; M12 body TPU; RJ45 body PA; green PUR cable jacket
Physical Weight (kg)	0.524
Dimensions L x W x H (cm)	21.1 x 11.1 x 5.5

Suggested applications

Engineering suggestions require suitability checks for your installation.

1. Industrial Ethernet connection to a moving station

A machine axis may require an Ethernet link that moves through a drag chain while connecting equipment with an M12 port to an RJ45 network drop.

Potential use

The 10 m cable provides D-coded M12-to-RJ45 CAT5e connectivity for compatible EtherNet/IP or PROFINET equipment. Check the cable path, bend radius, environmental rating at both connector ends, and the stated drag-chain motion limits against the installation.

10 m CAT5e M12 D-coded RJ45 Drag-chain suitable

2. Controller or vision-device network link

An inspection or automation cell may use an RJ45 switch while field equipment exposes a D-coded M12 Ethernet connection.

Potential use

The cable's two connector styles can bridge those interfaces where their Ethernet protocol, port rating, and link budget match the system design. Protect the RJ45 IP20 end from moisture and contamination.

EtherNet/IP PROFINET Shielded IP20 RJ45 end
