USD 1.50
Compact 9.5mm quick-mounting end clamp for NS 35/7.5 and NS 35/15 DIN rails. Features UL 94 V2 polyamide construction and large-surface marking capabilities.

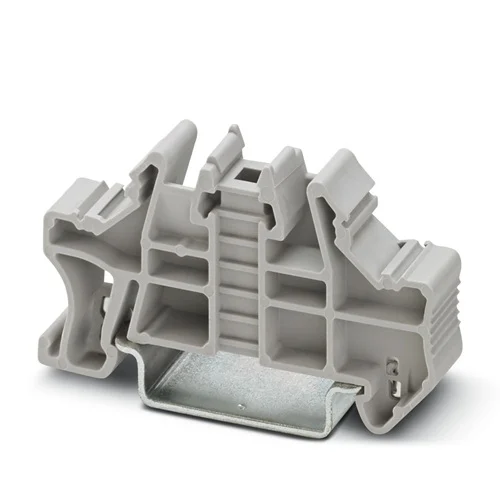

The Phoenix Contact CLIPFIX 35 (Part Number: 3022218) is an advanced quick-mounting end clamp engineered to establish a highly secure grip on industrial components mounted to standard 35 mm DIN rails. Designed to snap on instantly without tools, this robust gray bracket seamlessly accommodates both NS 35/7.5 and NS 35/15 rail systems. Manufactured from resilient Polyamide (PA) material, the bracket boasts a UL 94 V2 flammability rating and can endure static operational temperatures ranging from -60 °C up to an impressive 105 °C. Measuring precisely 9.5 mm in width, the ultra-slim footprint ensures structural integrity within densely packed industrial control cabinets while conserving valuable rail space. Additionally, the CLIPFIX 35 facilitates clear organizational layouts by supporting large-surface marking, natively accommodating components such as Zack marker strips (ZB 8 and ZB 8/27) and KLM 2 terminal strip markers.
| Parameter | Value |
|---|---|
| Material | Polyamide (PA) |
| Color | Gray (RAL 7042) |
| DIN Rail Compatibility | NS 35/7.5, NS 35/15 |
| Flammability Rating | UL 94 V2 |
| Operating Temperature Range | -60 °C to 105 °C |
| Width | 9.5 mm |
| Length | 55.6 mm |
| Height | 54.6 mm |
Provides necessary mechanical reinforcement to terminal block arrays experiencing high-vibration stresses on the factory floor, securing DIN-mounted mission-critical wiring modules from slipping.
Prevents terminal blocks from sliding across standard 35mm DIN rails under mechanical stress, ensuring reliable electrical connectivity.
Used effectively as a structural delimiter to space out high-voltage from low-voltage components on the same rail, simultaneously providing distinct equipment identification through large-surface markers.
Eliminates wiring hazards by preventing component shifting while improving long-term cabinet maintenance via clear, integrated label accommodation (ZB 8/KLM 2).
Secures components within outdoor telecom or railside enclosures where severe temperature fluctuations typically degrade standard plastics.
Maintains a firm clamping grip and structural integrity without embrittlement, thanks to a thermal tolerance ranging from -60 °C to 105 °C.
