Precision lateral-entry manual crimping tool for 0.14-10 mm² (AWG 25-7) wire ferrules. Features a self-adjusting square die and unlockable pressure lock.

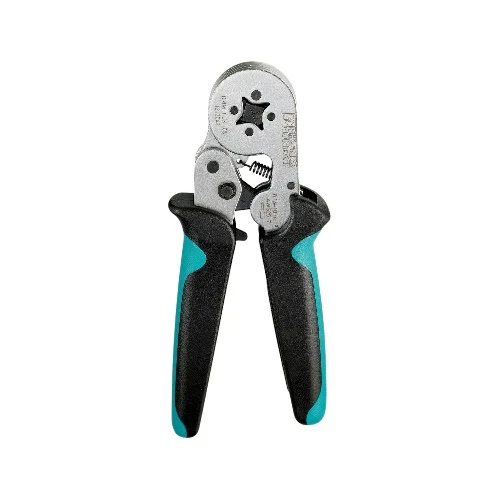

The Phoenix Contact 1212045 (CRIMPFOX 10S) is a professional-grade hand crimping tool engineered for the precise and repeatable processing of both uninsulated and insulated ferrules. Adhering strictly to DIN 46228 Parts 1 and 4 standards, it accommodates a broad conductor cross-section range from 0.14 mm² to 10 mm² (25 to 7 AWG). The tool features a lateral entry mechanism and a self-adjusting square crimp die, enabling flexible ferrule positioning and delivering a consistent, high-density contact profile. To ensure safety and reliability in critical industrial control panels, the integrated unlockable pressure lock guarantees that a full crimping cycle is completed before release, preventing under-crimped connections. Designed with ergonomic efficiency in mind, the mechanical leverage significantly minimizes operator hand fatigue during high-volume automated panel wiring operations.
| Parameter | Value |
|---|---|
| Product Type | Crimping Pliers |
| Crimping Profile | Square Crimp |
| Wire Cross-Section | 0.14 mm² to 10 mm² |
| AWG Range | 25 to 7 AWG |
| Insertion Type | Lateral Entry |
| Ferrule Standard Compliance | DIN 46228 Parts 1 and 4 |
| Locking Mechanism | Unlockable Pressure Lock |
| Color | Black |
Utilized to process high volumes of DIN 46228 standard ferrules on flexible control wiring before insertion into high-density push-in terminal blocks.
Prevents loose connections and wire pull-out under vibration by enforcing a complete crimp cycle via an integrated pressure lock mechanism.
Crimping of multi-core stranded cables used in dynamic articulated robot arms where secure, low-resistance terminations are mission critical.
Eliminates the risk of stray wire strands causing short circuits in tightly spaced servo drives, utilizing a consistent self-adjusting crimp die.
Preparation of I/O signal wiring and low-voltage power connections for automated CNC and packaging machinery electrical enclosures.
Significantly reduces electrical technician hand fatigue during repetitive wire termination tasks through ergonomically optimized mechanical advantage.
