Phoenix Contact DEK-REL 24/1/S Relay Module, compact 24V AC/DC terminal block with double contacts, LED display, and 5A reliable switching.

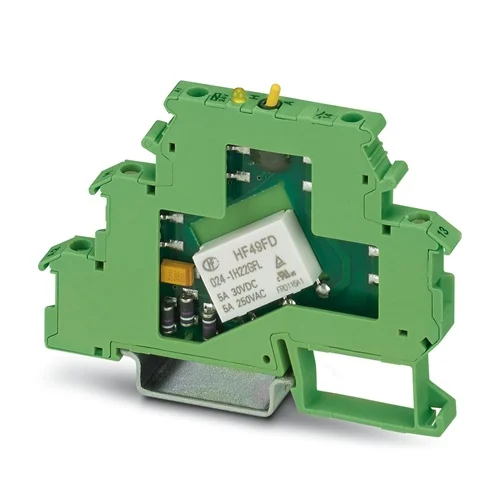

The Phoenix Contact DEK-REL 24/1/S Relay Module is a slim and versatile relay terminal block engineered for efficient switching of small to medium loads. Its narrow 6.2 mm width makes it ideal for space-constrained control panels, while safe isolation between coil and contact sides ensures reliable operation. The module runs on 24 V AC/DC and incorporates a robust gold-plated double contact system for dependable performance. With a built-in manual/automatic switch and a clear LED indicator, it allows simple monitoring and flexible control. Designed for modern automation environments, it delivers compactness, safety, and consistent functionality in demanding electrical systems.
The DEK-REL 24/1/S Relay Module provides a balance of compact size and extended service life, offering up to 20 million mechanical cycles. Its dual-contact design enhances stability and reduces the risk of connection failures, ensuring smoother operation in industrial applications. Capable of handling up to 5 A of switching current, it supports a broad voltage range to meet diverse installation requirements. The screw connection terminals simplify wiring, while the integrated LED aids quick fault detection and maintenance. Whether applied in machine building, process automation, or building management, this relay module delivers lasting reliability, reduced downtime, and efficient use of cabinet space.
Why Phoenix Contact DEK-REL 24/1/S?
The DEK-REL 24/1/S is designed to combine reliability and compactness in one module. Its 6.2 mm slim profile saves valuable control cabinet space, while the gold-plated double contacts guarantee stable signal transmission. With its built-in manual/automatic switch and LED status display, it offers engineers a smart, user-friendly solution for efficient monitoring and precise control in automation systems.
What problem does it solve?
This relay module addresses the challenge of dependable load switching in confined industrial setups. By ensuring safe coil-to-contact isolation and supporting up to 5 A switching current, it prevents common reliability issues such as unstable connections and space shortages. It enables control panels to operate with greater safety, efficiency, and longevity, even under continuous duty cycles.
| Feature | Details | Benefit |
|---|---|---|
| Nominal Input Voltage | 24 V AC/DC (range: 19.2–26.4 V) | Flexible use in different systems |
| Contact Type | 1 N/O double contact, AgNi with gold plating | Higher reliability and long service life |
| Max. Switching Current | Up to 5 A (3 A continuous) | Suitable for small to medium load switching |
| Switching Voltage | Up to 250 V AC / 125 V DC | Wide application coverage |
| Response / Release Time | 5 ms / 15 ms | Fast switching ensures efficiency |
| Protective Circuit | Integrated bridge rectifier | Safer operation and coil protection |
| Manual/Auto Switch | Integrated 3-position selector | Flexible operation and quick testing |
| Status Display | Yellow LED indicator | Easy troubleshooting and monitoring |
| Dimensions (W x H x D) | 6.2 mm × 80 mm × 61 mm | Saves valuable cabinet space |
| Connection Method | Screw terminal, 0.2–2.5 mm² | Secure and simple wiring |
| Service Life | ~20 million mechanical cycles | Reduced downtime and replacement costs |
| Operating Temperature | –20 °C to +50 °C | Reliable in varied environments |
| Insulation / Test Voltage | Basic insulation / 2 kV AC | Safe isolation between coil and contact |
| Standards & Approvals | IEC 60947-5-1, UL, cUL, EAC | Certified for global applications |
Download Phoenix Contact DEK-REL 24/1/S 2964131 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4017918101015 |
| Traffic Number | 2964131 |
| Weight | 20 g (without packing) |
| Country of Origin | China |
On modern assembly lines, conveyors must be switched quickly and reliably to keep pace with production. The DEK-REL 24/1/S relay module provides compact control that fits neatly into crowded panels while still offering dependable contact stability. Its gold-plated double contacts withstand frequent switching, preventing false triggers and wear. With the added benefit of LED status indication, technicians can monitor performance instantly, reducing downtime during troubleshooting. The result is smoother conveyor operation, improved efficiency, and safer handling of load transfers in continuous manufacturing.
In water treatment facilities, pump reliability is critical to prevent overflow or shortages. This relay module enables controllers to switch pumps safely with a 24 V signal, while isolating the low-voltage control side from high-voltage equipment. Its ability to handle inrush currents ensures pumps start without stress on the system. Operators also gain flexibility through the manual/automatic switch, which allows quick local intervention during maintenance or emergencies. With durable performance and compact design, it supports the constant operation needed in treatment processes.
Large buildings often rely on complex HVAC systems where fans, dampers, and chillers must respond to centralized commands. The DEK-REL 24/1/S relay acts as the critical interface between the building management system and higher-voltage HVAC actuators. Its reliability at both low and moderate switching currents ensures precise operation, keeping each zone comfortable and energy-efficient. LED indication provides immediate confirmation that signals have been received, allowing technicians to service equipment faster. The slim form factor saves cabinet space, which is highly valuable in large-scale installations.
In industrial machines, safety cannot be compromised. This relay module is frequently used in guarding circuits where power must be cut instantly if a protective door or barrier is opened. Its isolated design and double-contact configuration add redundancy, ensuring the safety signal is delivered every time. The integrated manual/auto function helps operators test circuits without shutting down the entire machine. By combining compactness with reliability, the module strengthens overall workplace safety and helps equipment comply with stringent industrial protection standards.
| Category | Model | Part Number | Description | Benefit |
|---|---|---|---|---|
| Insertion Bridge | EB 2-DIK RD | 2716693 | 2-position red insertion bridge, 6.15 mm pitch, 26 A capacity | Simplifies bridging between modules |
| Insertion Bridge | EB 3-DIK RD | 2716745 | 3-position red insertion bridge, 6.15 mm pitch, 26 A capacity | Enables parallel wiring in compact setups |
| Insertion Bridge | EB 4-DIK RD | 2716758 | 4-position red insertion bridge, 6.15 mm pitch, 26 A capacity | Reduces wiring effort across multiple relays |
| Insertion Bridge | EB 5-DIK RD | 2716761 | 5-position red insertion bridge, 6.15 mm pitch, 26 A capacity | Expands connectivity options |
| Insertion Bridge | EB 10-DIK RD | 2716774 | 10-position red insertion bridge, 6.15 mm pitch, 26 A capacity | Ideal for larger terminal groupings |
| Insertion Bridge | EB 5-DIK BU | 2716677 | 5-position blue insertion bridge, 6.15 mm pitch, 26 A capacity | Provides clear color-coded wiring |
| Insertion Bridge | EB 10-DIK BU | 2716680 | 10-position blue insertion bridge, 6.15 mm pitch, 26 A capacity | Facilitates efficient multi-connection |
| Insertion Bridge | EB 80-DIK BU | 2715940 | 80-position blue insertion bridge, 6.2 mm pitch, 26 A capacity | For extended bridging across large assemblies |
| Insertion Bridge | EB 80-DIK RD | 2715953 | 80-position red insertion bridge, 6.2 mm pitch, 26 A capacity | Long-run bridging for grouped relays |
| Separating Plate | D-DEK 1,5 GN | 2716949 | Green separating plate for terminal row ends | Provides safe spacing and end termination |
| Marker Strip | ZB 6:UNBEDRUCKT | 1051003 | White marker strip, unlabeled, for terminal block labeling (10 pcs) | Custom labeling for organization |
| Marker Strip | ZB 6,LGS:FORTL.ZAHLEN | 1051016 | Numbered marker strip, horizontal printing, 1–500 | Quick identification of connections |
| Marker Strip | ZB 6/WH-100:UNBEDRUCKT | 5060935 | White marker strip, unlabeled, 1000 pcs bulk pack | Economical large-scale labeling |
| Terminal Block | DIKD 1,5 | 2715979 | Initiator/actuator terminal block, screw connection, 24 A | Complements relay modules for sensor/actuator connections |
