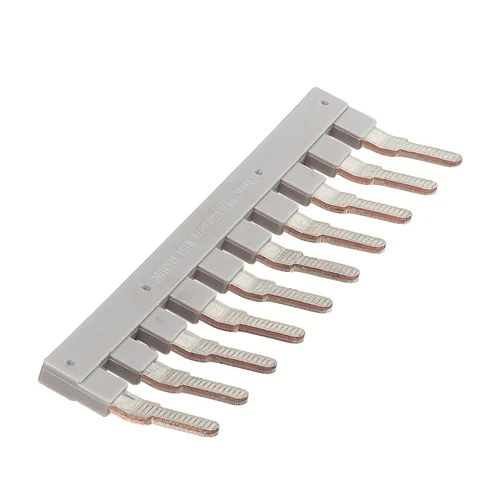

Phoenix Contact EB 10-10 Insertion Bridge 10-Position 10mm

Technical Overview

10-position insertion bridge featuring 10mm pitch, copper contacts, and PA insulating material. UL 94 V0 rated, operational from -60°C to 105°C.

Key Features

10 positions for versatile connectivity
10 mm pitch for standard compatibility
Constructed with copper (Cu) for reliable conductivity
PA (Polyamide) insulating material
UL 94 V0 flammability rating for enhanced safety
Wide operating temperature range from -60 °C to 105 °C
Designed for screw mounting

Technical Specification Matrix

Parameter	Value
Product type	Insertion bridge
Number of positions	10
Pitch	10 mm
Potentials	10
Color	gray (RAL 7042)
Material	Cu
Flammability rating according to UL 94	V0
Insulating material	PA
Ambient temperature (operation)	-60 °C ... 105 °C
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30% ... 70%
Mounting type	Screw mounting
Country of origin	PL
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	0 x 0 x 0

Industrial Applications

1. Industrial Control Panel Wiring

Used within industrial control panels to efficiently bridge multiple common potentials, such as power supply or ground lines, across a series of terminal blocks. Its 10-position, 10mm pitch design simplifies wiring and reduces potential error.

Problem Solved

Complex and time-consuming individual wiring for common potentials in densely packed control panels, ensuring uniform power distribution and easy system expansion.

Control PanelPotential DistributionTerminal BlockCommon PotentialIndustrial Automation

2. HVAC System Interconnection

Implementing power or signal distribution in Heating, Ventilation, and Air Conditioning (HVAC) systems. The bridge's robust PA insulating material and wide operating temperature range (-60°C to 105°C) ensure reliable performance in diverse environmental conditions often found in HVAC installations.

Problem Solved

Streamlining connections for multiple sensors, actuators, or control circuits within HVAC units, improving installation speed and long-term reliability under varying temperatures.

HVAC SystemsSignal DistributionPower ConnectionsBuilding AutomationTemperature Resistance

3. Machine and Equipment Power Distribution

Integrating into manufacturing machinery or processing equipment to consolidate power feeds or control signals to multiple components. The screw mounting type provides a secure and vibration-resistant connection, essential for operational longevity.

Problem Solved

Reducing wiring complexity and ensuring secure, stable electrical connections on dynamic machinery, thereby minimizing downtime due to loose or faulty wiring.

Machine WiringPower FeedsControl SignalsSecure ConnectionVibration Resistance
