1. Control Cabinet Power Distribution

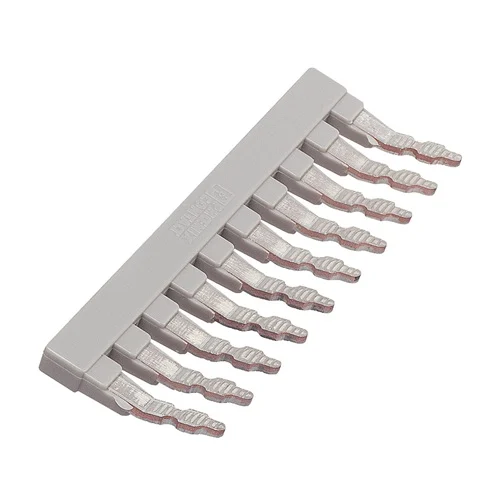

This insertion bridge efficiently distributes power within industrial control cabinets, providing a compact and reliable solution for connecting multiple terminal points to a common potential. Its 10-position design and 8mm pitch ensure compatibility with standard terminal blocks, streamlining wiring for PLCs, relays, and other control components.
Problem SolvedSimplifies power distribution and reduces wiring complexity in control cabinets, ensuring organized and robust connections to various devices from a single potential source.
Power distributionControl cabinetTerminal blockPLC wiringElectrical potential
2. High-Temperature Process Control Systems
In industrial processes requiring robust components capable of withstanding extreme conditions, the EB 10-8 insertion bridge is ideal. Its wide operating temperature range of -60 °C to 105 °C allows for stable and continuous potential distribution in environments with significant temperature fluctuations, such as heating or cooling systems, or outdoor enclosures.
Problem SolvedEnsures reliable electrical connectivity and power integrity in applications exposed to extreme ambient temperatures, preventing connection failures due to thermal stress.
High temperatureIndustrial processesThermal stabilityEnvironmental resilienceProcess control
3. Machine Automation Busbar Systems
For machine automation applications utilizing busbar systems for power or signal distribution, this 10-position insertion bridge provides a quick and secure method to tap into or distribute potentials. Its copper material ensures high conductivity for robust power delivery, and the screw mounting type offers a vibration-resistant connection crucial for dynamic machinery.
Problem SolvedFacilitates secure and efficient potential branching from busbar systems in automated machinery, enhancing modularity and reducing installation time while maintaining electrical reliability.
Machine automationBusbar systemSignal distributionPower tappingVibration resistance
