1. Industrial Control Panel Power Distribution

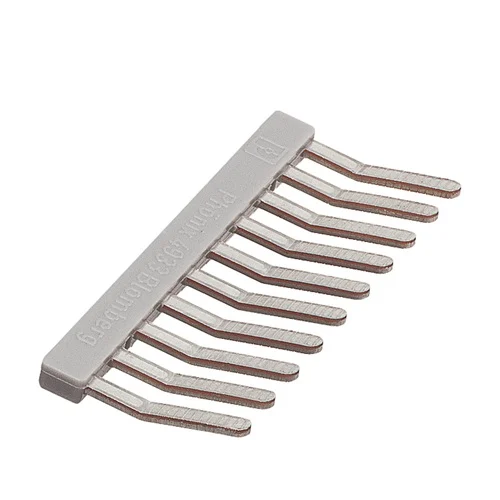

This 10-position, 5.2mm pitch insertion bridge efficiently distributes up to 24A from a single source to multiple terminal blocks within industrial control panels. Its insulated design enhances safety and reduces wiring complexity.
Problem SolvedEliminates the need for individual jumper wires, significantly reducing wiring time, potential for errors, and clutter in control cabinets while ensuring reliable, insulated power distribution.
Control panelpower distributionterminal blockscurrent sharingwiring simplificationinsulation24A
2. Signal Distribution in Process Automation Systems
Ideal for process automation systems requiring a common signal (e.g., ground or reference voltage) to be distributed to multiple sensor or actuator interfaces via terminal blocks. The 10-position, 5.2mm pitch design facilitates compact and organized signal routing.
Problem SolvedProvides a neat, standardized, and reliable method to distribute common signals to several points on a DIN-rail mounted terminal block array, improving system reliability and ease of maintenance compared to individual wire bridging.
Process automationsignal distributioncommon groundsensor interfacingcompact wiringterminal block accessories
3. Modular Machine Wiring in Harsh Thermal Environments
Ensures stable electrical connections between terminal blocks in modular machinery or equipment exposed to wide ambient temperature fluctuations from -60 °C to 110 °C. The copper and PA construction maintains conductivity and insulation integrity under extreme conditions.
Problem SolvedGuarantees robust and reliable electrical connectivity in environments with significant temperature variations, preventing connection failures, material degradation, or short circuits that could arise from extreme cold or heat.
Modular machineryextreme temperature-60°C to 110°Cthermal stabilityelectrical conductivityinsulation integrity
