$ 72.91

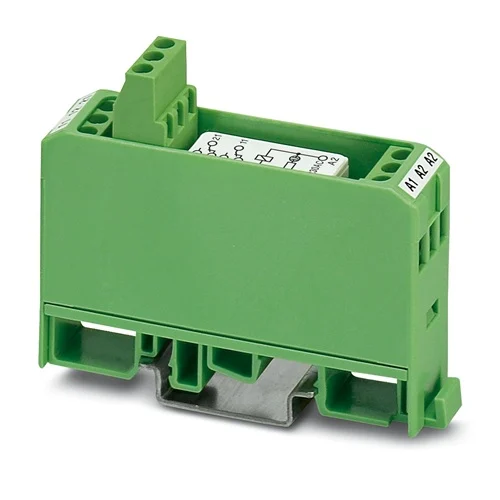

Compact Phoenix Contact EMG 17-REL/KSR-W230 relay module with 230V AC input, safe isolation, gold-plated contacts, and long service life.
The Phoenix Contact EMG 17-REL/KSR-W230/21-21-LCAU Relay Module is designed for dependable switching tasks in industrial automation. Operating on 230 V AC, it integrates two changeover contacts and ensures reinforced insulation between input and output sides for safe operation. Its built-in suppression circuitry minimizes interference, delivering stable performance in electrically noisy environments. Compact and easy to install on DIN rails, this relay module provides long service life, compliance with international standards, and dependable switching capacity, making it an ideal choice for engineers seeking both safety and efficiency in control systems.
This relay module combines versatility and durability to meet a wide range of application needs. Featuring gold-plated AgNi contacts, it reliably switches both small and larger loads while maintaining low wear and excellent conductivity. Its slim 17.5 mm width conserves space in control panels, while fast switching times increase operational responsiveness. With a mechanical lifespan of approximately 50 million cycles, it ensures long-term dependability. The screw-type terminals simplify wiring, and its ability to operate across varied temperatures supports use in demanding environments. For automation, power distribution, and machine control, this module offers both practical efficiency and long-term reliability.
The Phoenix Contact EMG 17-REL/KSR-W230/21-21-LCAU stands out because it combines compact design, safe isolation, and robust relay technology in a single module. Unlike conventional relays, it balances long service life with reliable switching of both delicate signals and higher loads. Its integrated suppression circuit reduces interference, ensuring consistent control performance in demanding industrial environments. For engineers, it means higher safety, space savings, and worry-free reliability inside the control cabinet.
Industrial systems often struggle with unstable switching, electrical interference, and limited panel space. The EMG 17-REL/KSR-W230/21-21-LCAU Relay Module addresses these challenges by offering reinforced insulation for safety, gold-plated contacts for dependable conductivity, and compact dimensions for space efficiency. It minimizes downtime caused by unreliable relays, simplifies installation with screw connections, and extends service life well beyond standard devices. In short, it solves the problem of balancing high performance, safety, and durability in modern automation.
| Feature | Details | Benefit |
|---|---|---|
| Input Voltage | 230 V AC (range 184–253 V) | Stable operation in standard AC power systems |
| Contacts | 2 changeover (AgNi + Au) | Reliable switching from small signals to larger loads |
| Switching Capacity | Up to 1250 VA (250 V AC) | Handles both control signals and power loads |
| Insulation | Reinforced, 6 kV surge isolation | High safety between input and output circuits |
| Response Time | 7 ms typical | Quick switching for precise control |
| Release Time | 3–12 ms typical | Fast reset for consistent performance |
| Service Life | ~50 million mechanical cycles | Long-lasting durability and reduced maintenance |
| Mounting Type | DIN rail, 17.5 mm width | Space-saving installation in control cabinets |
| Operating Temperature | -20 °C to +40 °C | Reliable use in varied industrial environments |
| Connection Method | Screw terminals, up to 4 mm² | Easy and secure wiring for rigid or flexible conductors |
| Certifications | UL, cUL, EAC | International compliance for global applications |
Download EMG 17-REL/KSR-W230/21-21-LCAU 2941468 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4017918080464 |
| Tariff Number | 85364190 |
| Weight per Piece | ~56 g |
| Country of Origin | Germany (DE) |
In industrial conveyor systems, safety is critical to protect operators and equipment. This relay module can be configured as part of a safety interlock, shutting down motors when an emergency stop or protective guard is triggered. Its safe isolation between coil and contacts ensures the control system is fully protected from high-voltage circuits. The fast 7 ms switching time enables immediate reaction, while dual changeover contacts provide redundancy for higher reliability. With a long mechanical service life, it continues operating dependably even in round-the-clock production environments, minimizing downtime and enhancing worker safety.
Large-scale heating, ventilation, and air conditioning systems rely on reliable relay modules to coordinate fans, compressors, and dampers. The EMG 17-REL module acts as an effective interface between low-voltage building automation controllers and high-power electrical equipment. Its gold-plated contacts guarantee reliable signal transmission despite frequent switching, while the compact 17.5 mm DIN-rail design saves space in crowded control panels. Reinforced insulation protects sensitive electronics from power surges and interference, ensuring stability. The wide operating temperature range supports performance in mechanical rooms where conditions can fluctuate, making it ideal for modern energy-efficient building control systems.
Water distribution and wastewater facilities often require remote-controlled pump operations with precise timing. This relay module serves as the switching link between control logic and heavy pump motor contactors. With a switching capacity up to 1250 VA, it handles motor loads without compromising reliability. Built-in interference suppression prevents false activations caused by long cable runs or electrical noise, which are common in outdoor or remote installations. Its screw terminals simplify on-site wiring, while the durable design supports years of dependable use, reducing service calls. By providing reliable switching under demanding field conditions, it helps maintain consistent water supply operations.
Packaging equipment demands precise, repeatable switching to synchronize conveyors, actuators, and sealing units. The EMG 17-REL module’s fast response and release times allow accurate timing of motion control, reducing production errors. Its dual changeover contacts enable flexible wiring for redundancy or alternate control paths. The slim profile helps save valuable panel space inside machine enclosures, and its extended 50 million cycle mechanical lifespan makes it suitable for continuous, high-speed operations. By ensuring dependable switching and minimal maintenance requirements, it enhances overall machine uptime and supports cost-efficient production in industries where downtime is expensive.
| Category | Model / Accessory | Part Number | Benefits / Usage |
|---|---|---|---|
| Relay Module (Main Unit) | EMG 17-REL/KSR-W230/21-21-LCAU | 2941468 | Core relay module with 230 V AC coil, dual changeover contacts, DIN rail mounting |
| Marking Material | EMG-GKS 12 | 2947035 | Device marking label (12 mm width) for clear identification of installed relays |
| Terminal Block Accessory | ST Marking Strip | Various | Compatible labeling strips to standardize identification across Phoenix Contact terminal modules |
| DIN Rail | NS 35/7,5 AL | 1201733 | Standard aluminum DIN rail for secure mounting in control panels |
| End Brackets | CLIPFIX 35-5 | 3022218 | Ensures relay modules and accessories remain securely fixed on the DIN rail |
| Screwdrivers (Service Tool) | SZF 0-0,4×2,5 | 1204517 | Precision tool for safe wiring and maintenance of screw connections |
