Discover the Phoenix Contact EMG 22-REL/KSR-24/21 relay module with 24 V AC/DC input, 6 A capacity, safe isolation, and compact DIN rail design.

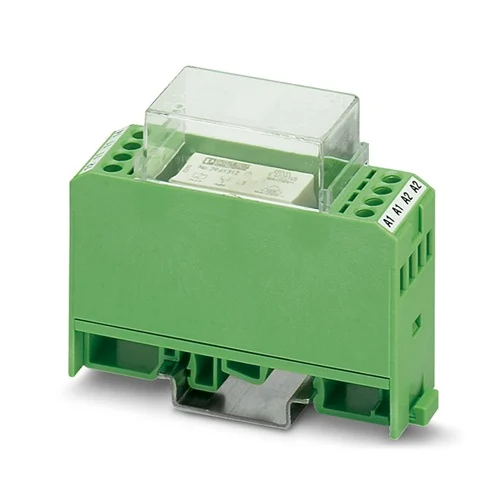

The Phoenix Contact EMG 22-REL/KSR-24/21 relay module is built to deliver stable switching performance for medium to large industrial loads. Operating with a 24 V AC/DC input, it provides reinforced insulation and safe separation between the coil and contact side, protecting sensitive systems against voltage risks. Its compact 22.5 mm design with DIN rail mounting ensures effortless integration into control cabinets. An integrated suppression circuit reduces interference, while the front-facing LED gives clear operational feedback. With durable AgNi contacts and robust construction, this relay module is engineered for long-term reliability in demanding automation and process environments.
The EMG 22-REL/KSR-24/21 relay module goes beyond standard switching by offering practical advantages that improve efficiency and safety. Its 6 A switching capacity supports diverse load types, while high surge resistance ensures consistent operation in challenging electrical conditions. The protective input circuitry minimizes unplanned downtime, and the screw-type terminals allow quick installation and secure wiring. Designed for continuous operation across a wide temperature range, it suits everything from machinery automation to building systems. By combining compact dimensions with dependable performance, this relay module reduces maintenance effort, increases system stability, and adds measurable value to modern industrial control solutions.
The Phoenix Contact EMG 22-REL/KSR-24/21 stands out for its combination of compact design, safe electrical isolation, and long mechanical lifespan. Unlike generic relays, it integrates suppression circuitry, LED indication, and durable AgNi contacts in one module. This means engineers save space in control panels while gaining reliable switching performance for years. It’s not just a relay—it’s a smarter, safer, and more efficient solution for modern automation.
Electrical control systems often struggle with unstable switching, interference, or limited load handling. The EMG 22-REL/KSR-24/21 solves these issues by offering reinforced insulation, a 6 A switching capacity, and built-in protection against surges and noise. It bridges the gap between sensitive PLC outputs and demanding field devices, ensuring uninterrupted operation. By reducing downtime, wiring complexity, and safety risks, it provides a dependable backbone for industries that require flawless automation.
| Feature | Details | Benefit |
|---|---|---|
| Nominal Input Voltage | 24 V AC/DC (19.2–26.4 V range) | Flexible use across standard control voltages |
| Switching Capacity | 6 A continuous, up to 250 V AC/DC | Handles medium to large loads with reliability |
| Contact Type | 1 Changeover (AgNi material) | Robust performance with long electrical life |
| Service Life | ~50 million cycles (mechanical) | Long-lasting, reduces replacement costs |
| Response/Release Time | 8 ms / 10 ms | Fast switching ensures process efficiency |
| Surge Voltage Resistance | Up to 4 kV | Strong protection against transient voltages |
| Protective Circuit | Integrated bridge rectifier & suppression | Minimizes interference and downtime |
| Operating Temperature | -20 °C to +50 °C | Suitable for diverse industrial environments |
| Mounting | DIN rail, any position | Quick and flexible installation |
| Connections | Screw terminals, AWG 24–12 | Secure and versatile wiring for different conductors |
| Housing Width | 22.5 mm | Saves space in dense control cabinets |
| Status Indication | Yellow LED | Quick and clear operating status monitoring |
| Insulation | Reinforced, 6 kV isolation | Ensures safe separation of coil and contact sides |
Download EMG 22-REL/KSR-24/21 – 2951885 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4017918084295 |
| Customs Tariff Number | 85364190 |
| Weight (per piece) | ~62 g |
| Country of Origin | Germany (DE) |
In automated production lines, conveyors must start and stop with precision to avoid product jams. The EMG 22-REL/KSR-24/21 relay connects low-voltage PLC outputs to motor starter coils, enabling smooth transitions. Its 6 A switching capacity supports small to medium motor control, while the reinforced insulation ensures operator and equipment safety. The integrated suppression circuit prevents electrical noise from affecting nearby sensors or controllers. Compact design and DIN-rail mounting allow it to fit easily into crowded panels. With reliable switching and long service life, it helps manufacturers maintain consistent throughput while minimizing maintenance interruptions.
Commercial HVAC systems often involve pumps, fans, and dampers that require controlled activation. The EMG 22-REL/KSR-24/21 relay provides safe isolation between the building management system and high-voltage components. Its compact footprint allows multiple relays to be arranged efficiently in one control panel. With robust AgNi contacts, the module can handle frequent switching cycles common in heating and cooling operations. Surge voltage resistance ensures that sensitive automation electronics are protected from electrical disturbances. The yellow LED status indicator offers quick visual confirmation, simplifying monitoring and troubleshooting in large building systems.
Packaging machinery requires safety circuits that immediately disable motion when a guard is opened or an emergency stop is triggered. The EMG 22-REL/KSR-24/21 relay ensures fast response by cutting the control signal to motors and actuators within milliseconds. Its reinforced insulation guarantees reliable separation between control and load sides, crucial for operator safety. The relay’s high mechanical endurance supports millions of cycles, ideal for machines running continuously. Clear LED indication helps technicians verify the relay’s condition quickly, reducing downtime during inspections. This makes it a dependable component in maintaining both safety compliance and production efficiency.
In water treatment applications, pumps are often triggered by level or pressure sensors. The EMG 22-REL/KSR-24/21 relay acts as the interface between the sensor logic and the pump’s control circuit. With a rated switching capacity of 6 A and surge resistance up to 4 kV, it can reliably handle repetitive on/off cycles without risk of control signal disruption. The integrated suppression circuitry protects controllers from interference caused by inductive loads. Its wide operating temperature range allows reliable use in plant environments where conditions fluctuate. By ensuring stable operation, the relay helps operators maintain consistent flow and treatment quality.
| Category | Model Name | Part Number | Benefits |
|---|---|---|---|
| Protective Housing | EMG 22-LG | – | Protects relay module, ensures secure DIN-rail mounting |
| Relay Module (Alternative) | Relay Module | 2967604 | Offers alternate switching option for different load types |
| Relay Module (Alternative) | Relay Module | 2967060 | Cost-efficient variant, compatible with various control panels |
| Logic Control Module | PLC-RSC | – | Adds logic functionality for advanced control applications |
| Same Series Relay | EMG 22 Relay | P 1-EMG 22 | Ensures compatibility within the EMG 22 product family |
| Accessory Component | General Accessory | 2946146 | Enhances relay setup with supplementary functions |
| Wiring Accessory | Plug-in Bridge | – | Simplifies wiring by connecting multiple relays to one supply line |
| Marking Accessory | Marking System | – | Provides clear identification and easier maintenance |
| Mounting Accessory | Retaining Clip | – | Secures modules firmly on DIN rails, prevents loosening |
