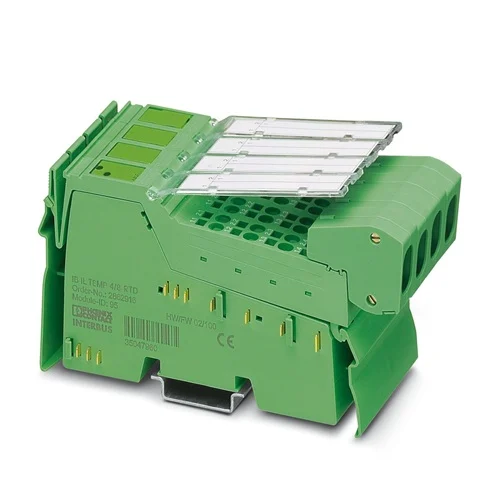

Phoenix Contact IB IL TEMP 4-8 RTD-PAC Temperature Module

Technical Overview

8-channel RTD analog input module for 2- and 3-conductor sensors, supporting Pt, Ni, Cu, KTY types for industrial temperature measurement.

Key Features

Supports Pt, Ni, Cu, KTY sensor types according to DIN and SAMA.
8 inputs for resistive temperature sensors and linear resistors up to 20 kΩ.
Compatible with 2- and 3-conductor connection technology.
Communication via process data or parameter channel (PCP).
Channels are parameterized independently of one another via the bus system.
Robust inputs suitable for harsh industrial environments with electromagnetic interference.
Measured values can be represented in three different formats.
Offers temperature and resistance measurement in the millisecond range.
Equipped with diagnostic and status indicators.
Designed for use within an Inline station.

Technical Specification Matrix

Parameter	Value
Width	48.8 mm
Height	136.8 mm
Depth	71.5 mm
Weight	190 g (excluding packaging)
Operating Voltage	24 V DC (nominal), 19.2 V DC - 30 V DC (supply)
Logic Voltage UL	7.5 V DC
IP Rating	IP20
Ambient Temperature (Operation)	-25 °C to 55 °C
Ambient Temperature (Storage/Transport)	-25 °C to 85 °C
Permissible Air Humidity (Operation/Storage/Transport)	10 % to 95 % (according to EN 61131-2)
Air Pressure (Operation/Storage/Transport)	70 kPa to 106 kPa (up to 3,000 m above sea level)
Number of Analog Inputs	8
Sensor Types Supported	Pt, Ni, Cu, KTY according to DIN and SAMA
Input Range	Resistive temperature sensors and linear resistors up to 20 kΩ
Connection Technology	2- and 3-conductor
Communication Method	Process data or parameter channel (PCP)
Inline Local Bus Transmission Speed	500 kbps
Housing Color	Green (RAL 6021)
Mounting Type	DIN rail mounting
Physical Weight (kg)	0.252
Dimensions L x W x H (cm)	7.15 x 4.88 x 13.68

Industrial Applications

1. Industrial Furnace Temperature Monitoring

Monitoring multiple temperature zones in industrial furnaces or kilns using various RTD types (Pt, Ni, Cu) to ensure precise thermal profiles for material processing or heat treatment.

Problem Solved

Provides accurate, multi-channel temperature data from harsh, electromagnetically noisy furnace environments to a PLC, enabling closed-loop control and preventing material damage due to incorrect temperatures. The robust inputs and -25 °C to 55 °C operating range ensure reliability in demanding industrial heat treatment applications, while the 24V DC operation aligns with standard industrial control systems.
